HDPE Siphon Drainage Y-Branch Tee 45-Degree 50mm-315mm

Share to:

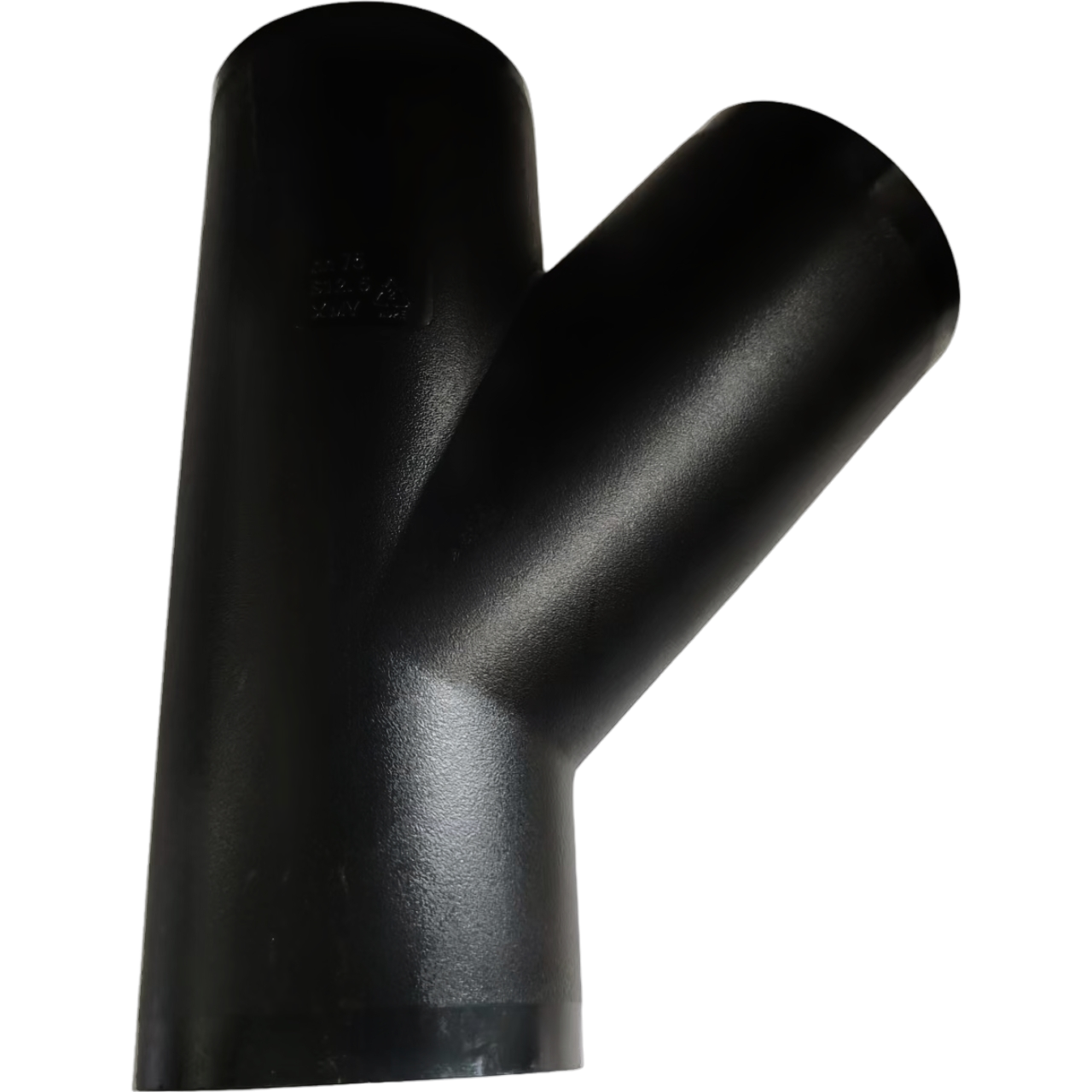

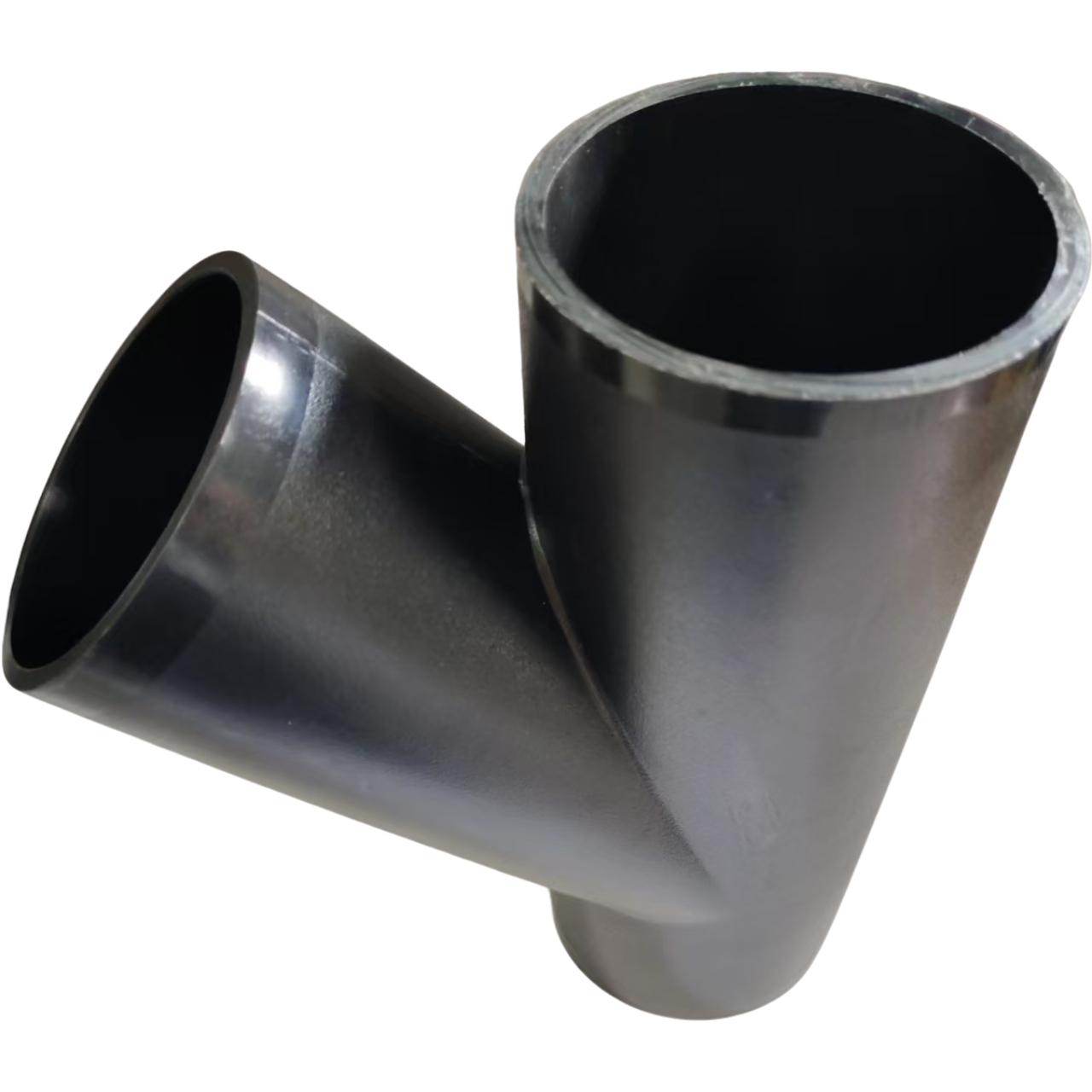

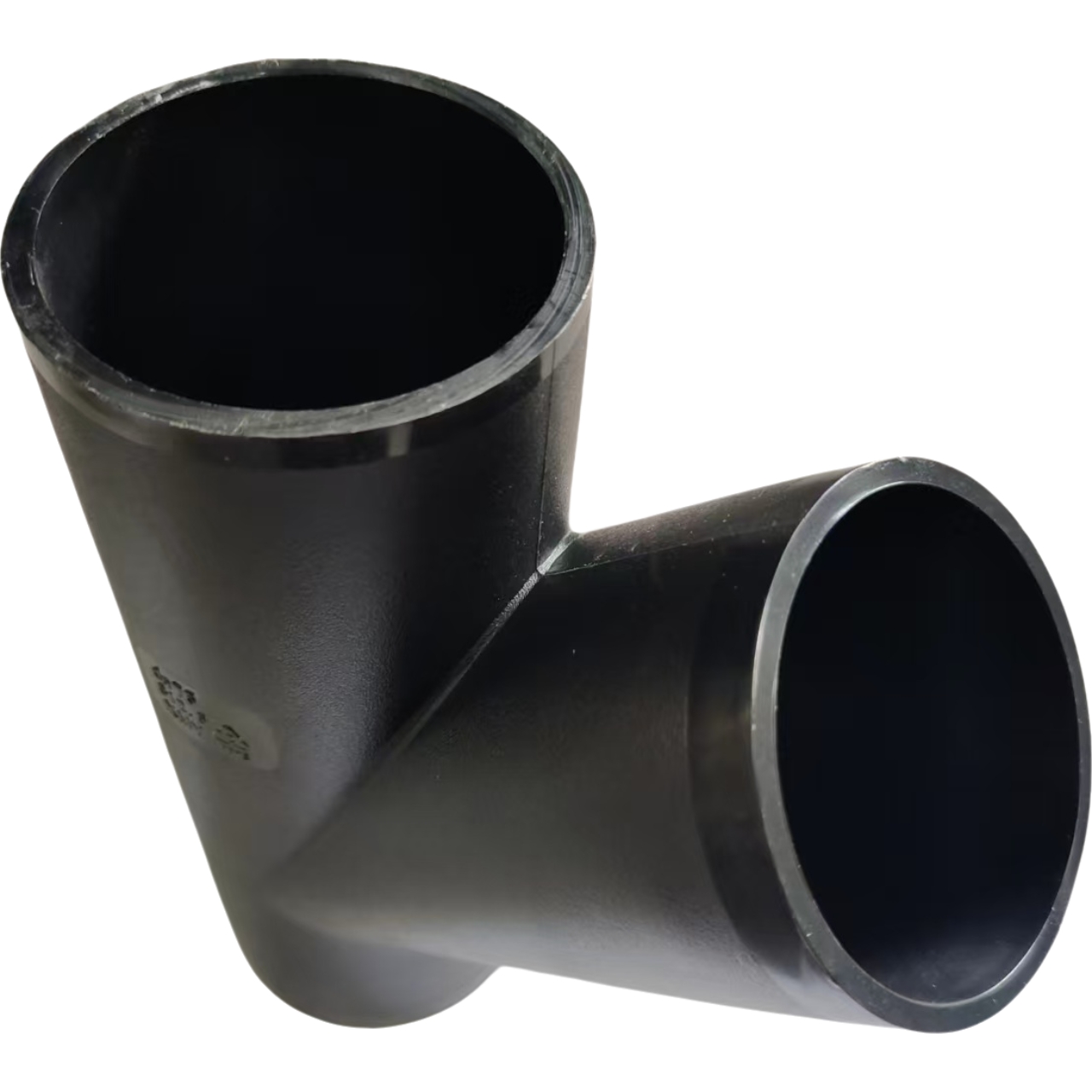

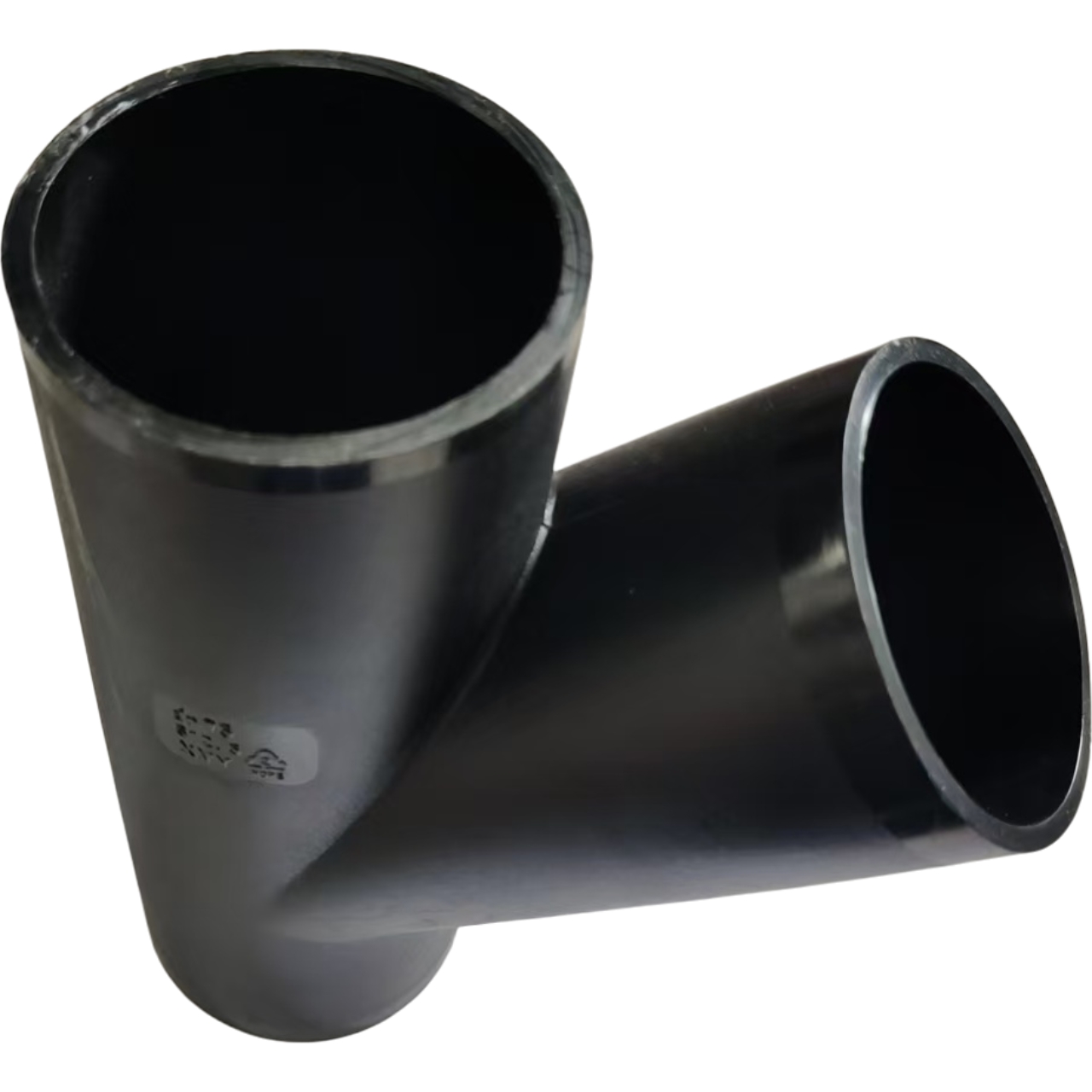

HDPE Siphon Drainage Y-Branch Tee 45-Degree 50mm-315mm

The Y-Branch Tee (45-Degree) (Slant Tee) is a specially designed fitting used in siphonic drainage systems to connect multiple pipes at a 45-degree angle. It ensures smooth water flow, minimizes turbulence, and enhances the efficiency of siphonic drainage operations in various settings, including commercial, industrial, and residential buildings.

Color:	Standard Black (customizable)
Size:	50mm-315mm (Customizable)
Material:	PE100/ PE8003
Package:	Wooden case, cartons or bags.
Process:	Butt Fusion
Pressure Rating:	SDR26 (0.6Mpa) (PN6)
Delivery :	Dalian Port 5-15Days
Availability:



Inquire Add to Basket PDF Export

Model:
SD YTee
Brand:
XMY

Specifications:

50-50-50	110-90-110	200-110-200	315-160-315
56-56-56	110-110-110	200-125-200	315-200-315
63-50-63	125-63-125	200-160-200	315-250-315
63-63-63	125-75-125	200-200-200	315-315-315
75-50-75	125-90-125	250-75-250
75-63-75	125-110-125	250-75-250
75-75-75	125-125-125	250-90-250
90-50-90	160-75-160	250-110-250
90-63-90	160-90-160	250-125-250
90-75-90	160-110-160	250-160-250
90-90-90	160-125-160	250-200-250
110-50-110	160-160-160	250-250-250
110-63-110	200-75-200	315-110-315
110-75-110	200-90-200	315-125-315
