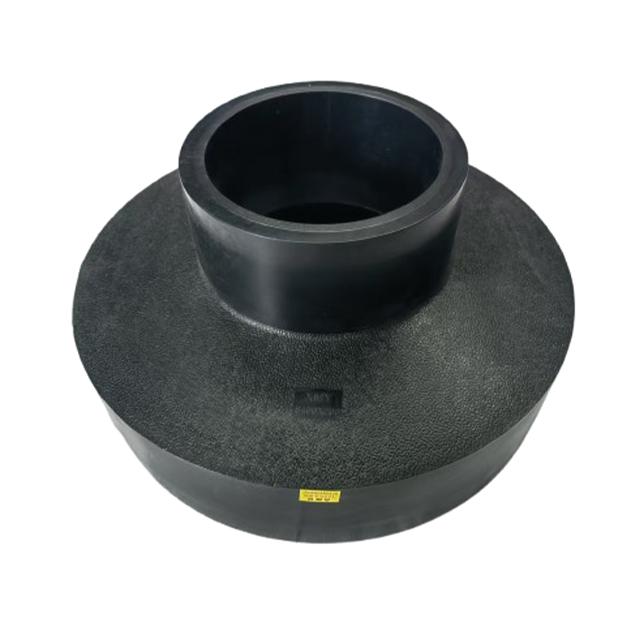

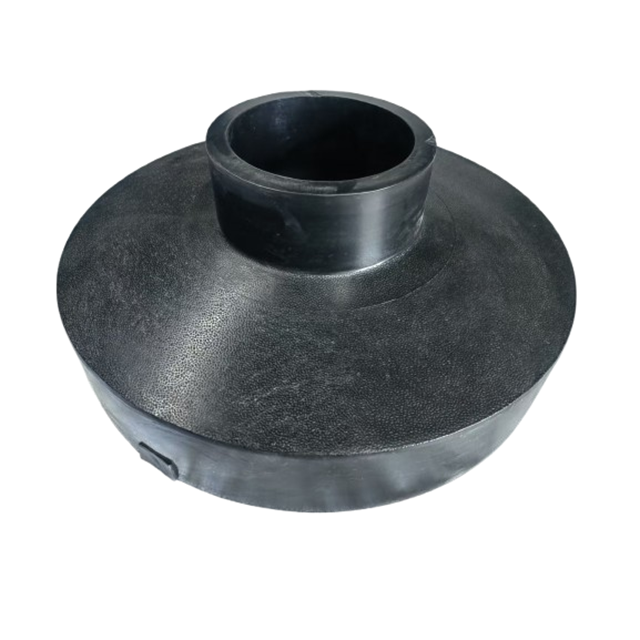

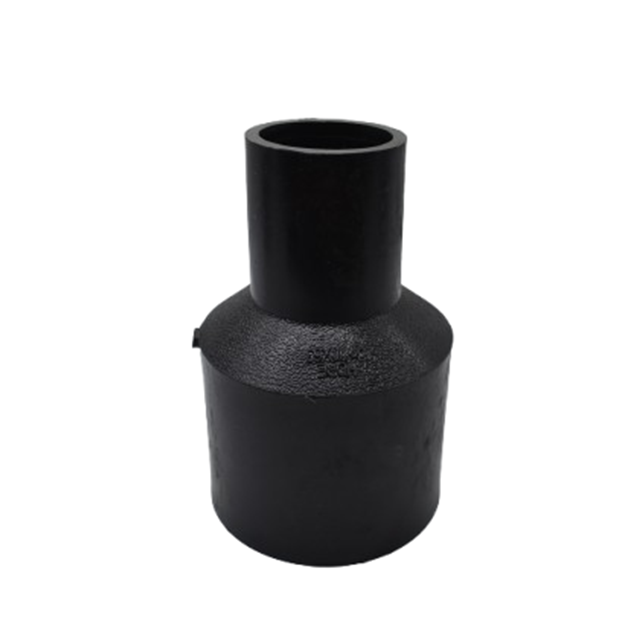

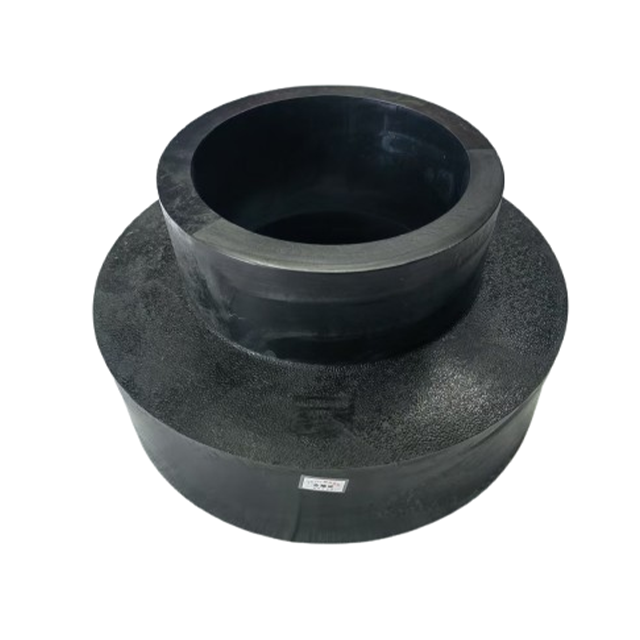

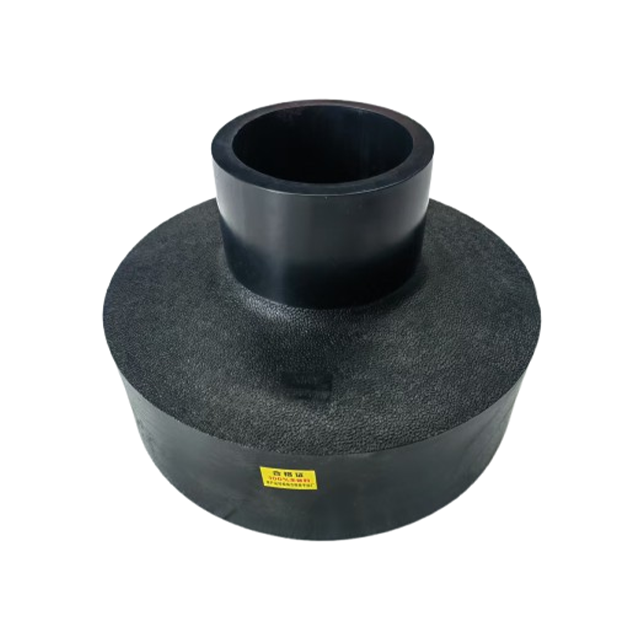

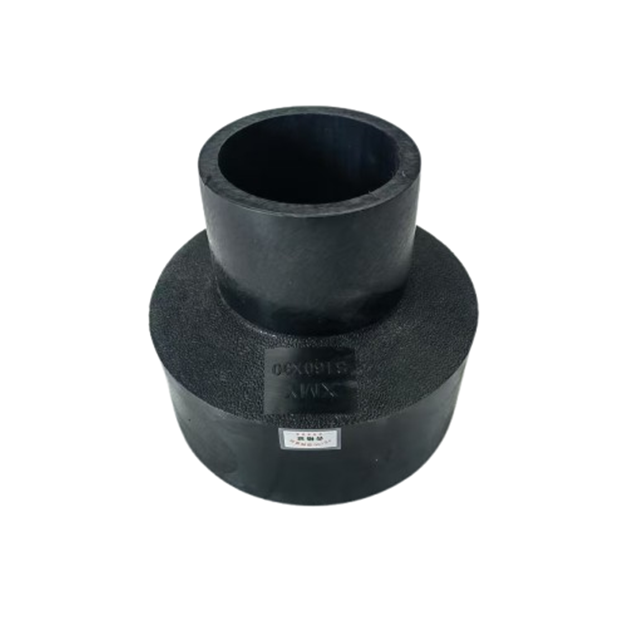

HDPE Butt Fusion Reducer Coupling

Butt Fusion Reducer is a type of pipe fitting designed to connect two pipes of different diameters through a butt fusion welding process. This ensures a smooth transition of fluid or gas flow between the connected pipes, minimizing turbulence and pressure loss.

Color:	Standard Black and Blue (Customizable)
Size:	From S75mm-50mm to S630mm-560mm (Customizable)
Material:	PE100/ PE2480
Process:	Butt Fusion Injection
Pressure Rating:	SDR11 (1.6MPa)/ SDR13.6 (1.25MPa)/ SDR17 (1.0MPa)
Package:	Wooden case, cartons or bags.
Delivery :	5-15 Days
Availability:



Inquire Add to Basket PDF Export

Model:
HDPE BF Reducer
Brand:
XMY

Specifications:

S75-50	S160-63	S200-180	S280-250	S400-160	S500-315
S75-63	S160-75	S225-110	S315-110	S400-200	S500-355
S90-50	S160-90	S225-160	S315-160	S400-225	S500-400
S90-63	S160-110	S225-200	S315-180	S400-280	S500-450
S90-75	S160-125	S250-110	S315-200	S400-315	S560-315
S110-50	S160-140	S250-125	S315-225	S400-355	S560-355
S110-90	S180-110	S250-160	S315-250	S450-200	S560-400
S125-63	S180-125	S250-200	S315-280	S450-225	S560-450
S125-75	S180-140	S250-225	S355-110	S450-250	S560-500
S125-90	S180-160	S280-110	S355-160	S450-280	S630-315
S125-110	S200-63	S280-125	S355-200	S450-315	S630-355
S140-63	S200-75	S280-140	S355-225	S450-355	S630-400
S140-75	S200-90	S280-160	S355-250	S450-400	S630-450
S140-90	S200-110	S280-180	S355-280	S500-200	S630-500
S140-110	S200-125	S280-200	S355-315	S500-225	S630-560
S140-125	S200-160	S280-225	S400-110	S500-250

HDPE Butt Fusion Fittings Details

HDPE BUTT FUSION FITTINGS	SPECIFICATION	SIZE RANGE (mm)	PRESSURE RATING (SDR/MPa)
	REDUCER	DN50-630mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	EQUAL TEE	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	REDUCING TEE	DN50-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	22.5 ° ELBOW	DN110-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	30 ° ELBOW	DN450-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	45 ° ELBOW	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)

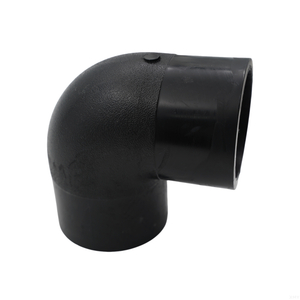

	90 ° ELBOW	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	CROSS	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	REDUCING CROSS	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	END CAP	DN75-1200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	STUB END	DN50-1200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	FLANGE	DN50-200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	STOP VALVE	DN75-200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	BALL VAVLE	DN75-200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
