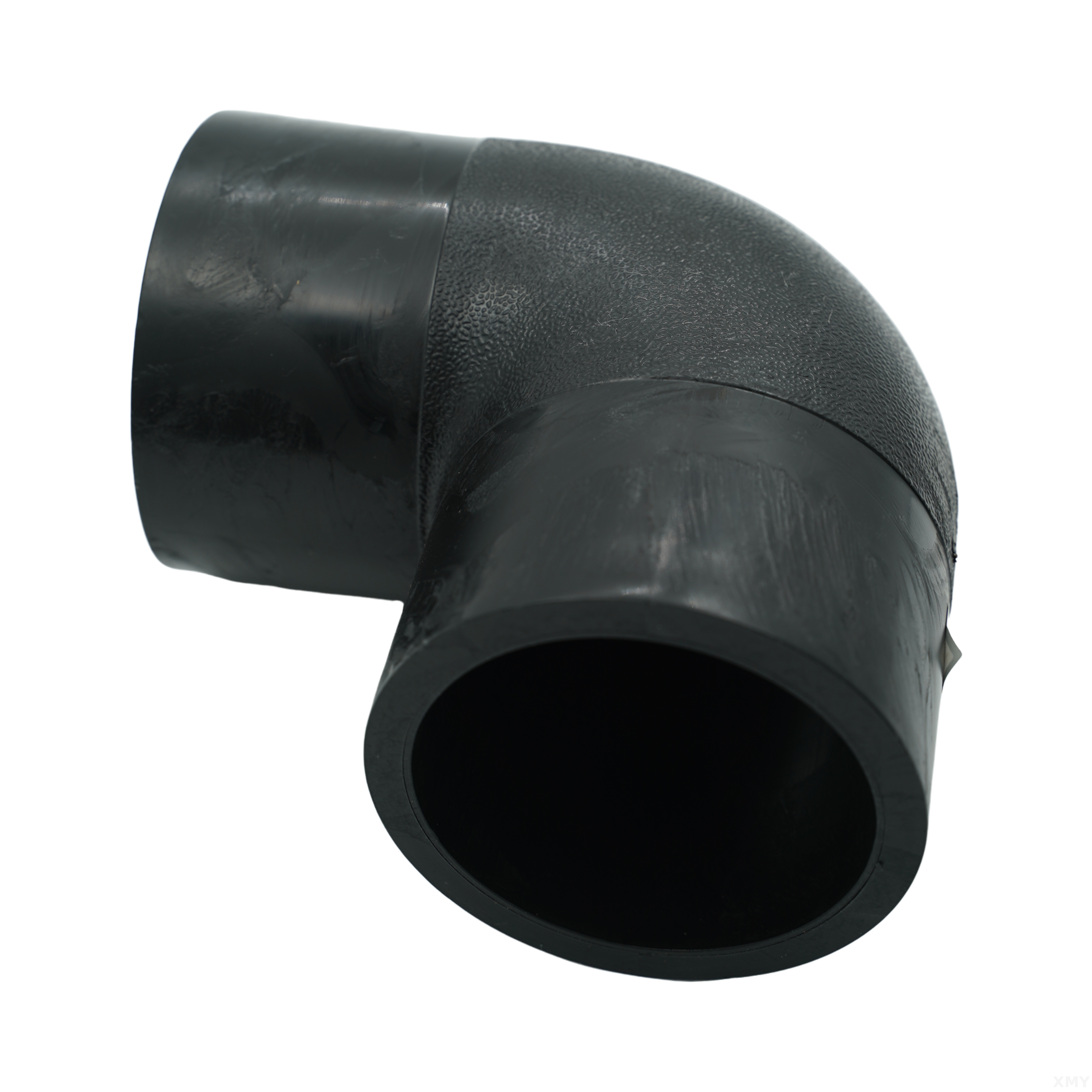

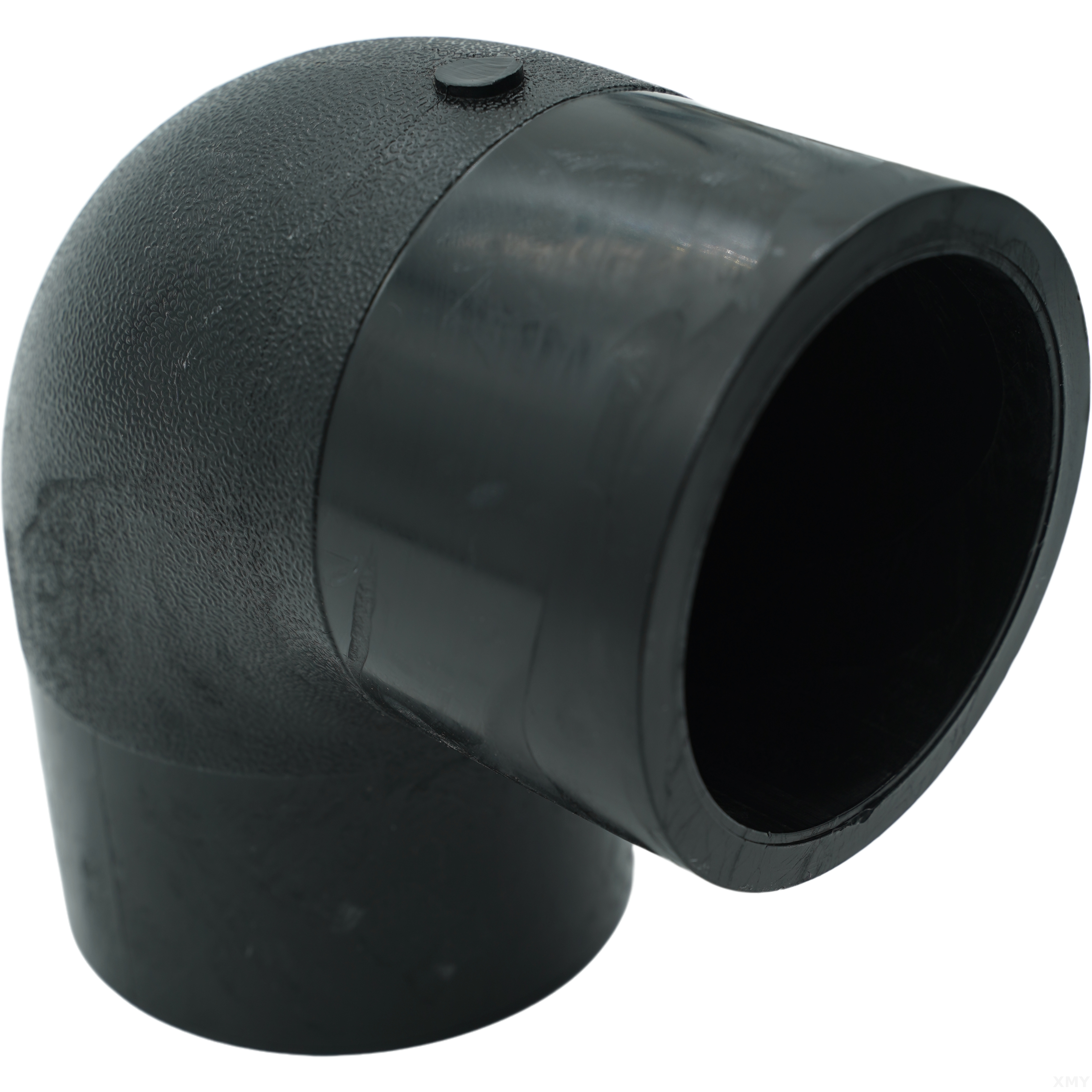

HDPE Butt Fusion 90-Degree Elbow| Water Supply| Plastic Pipe Fittings 630mm-800mm

Share to:

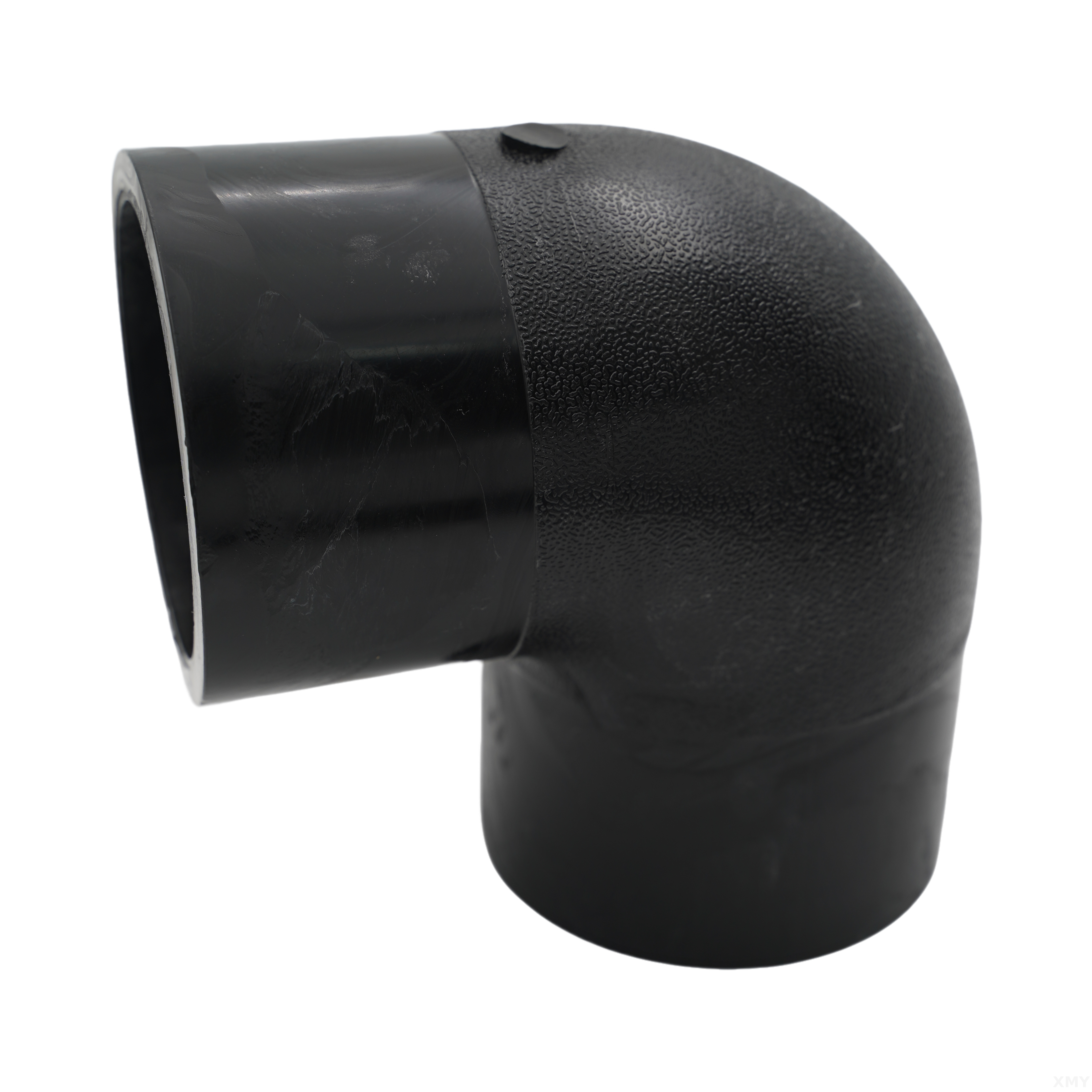

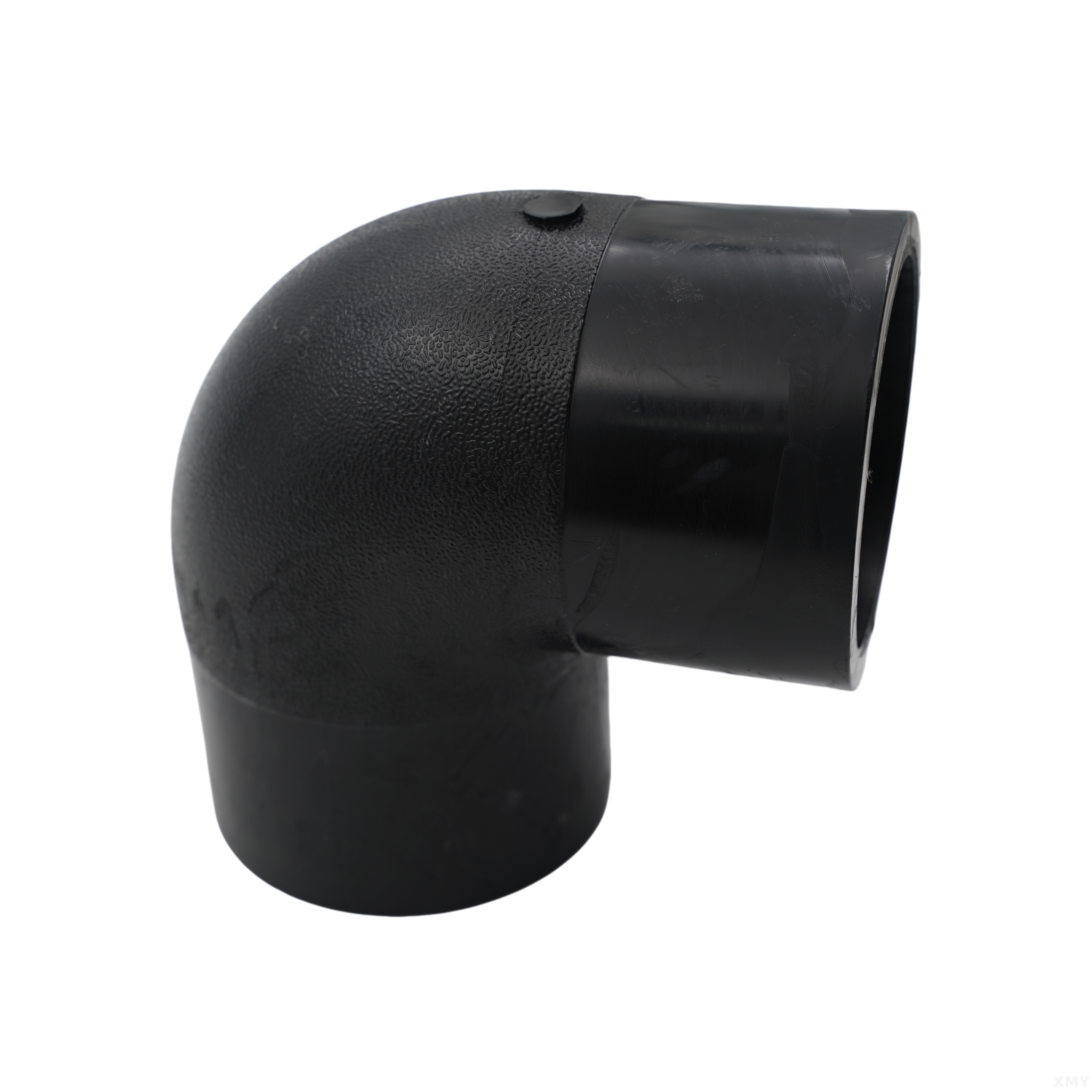

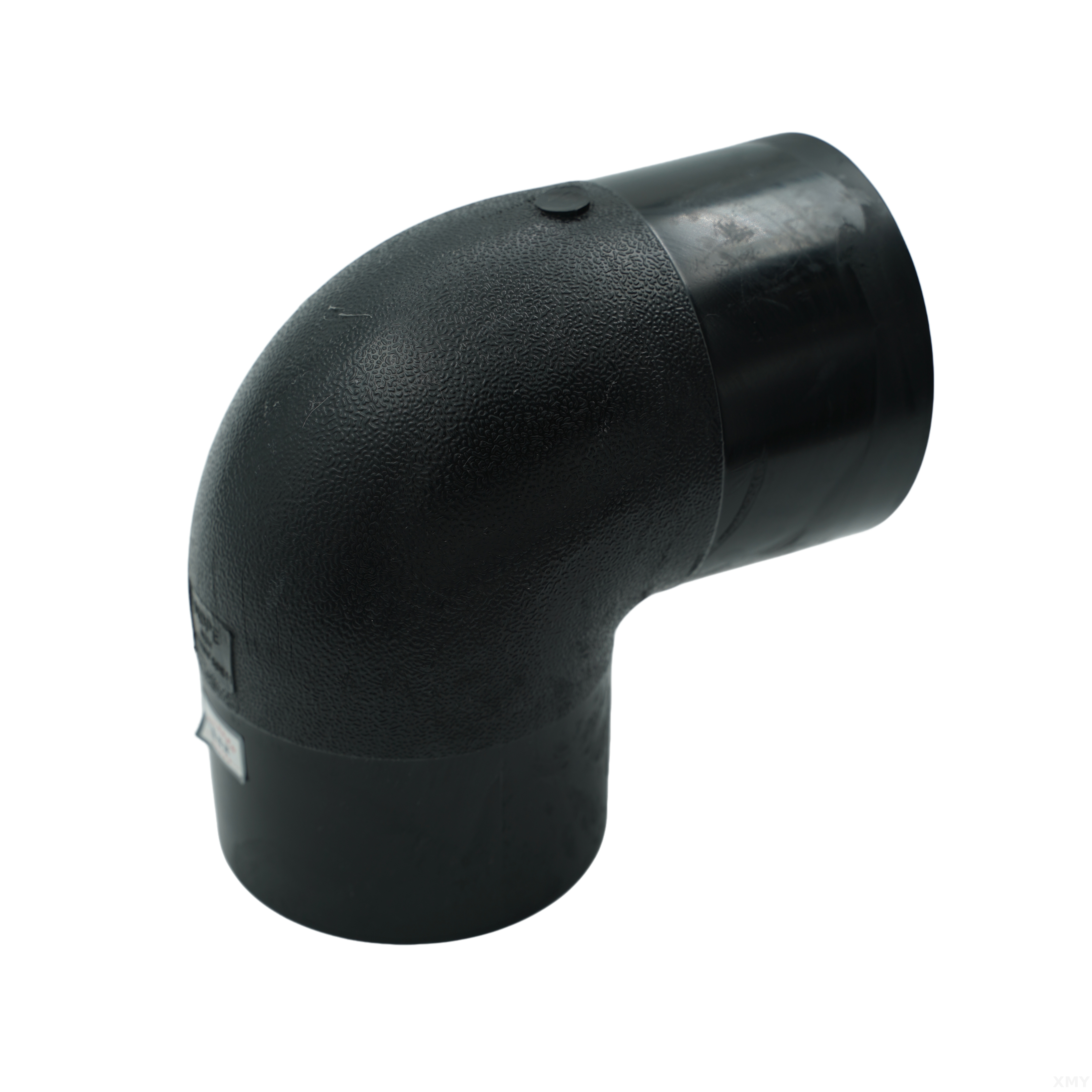

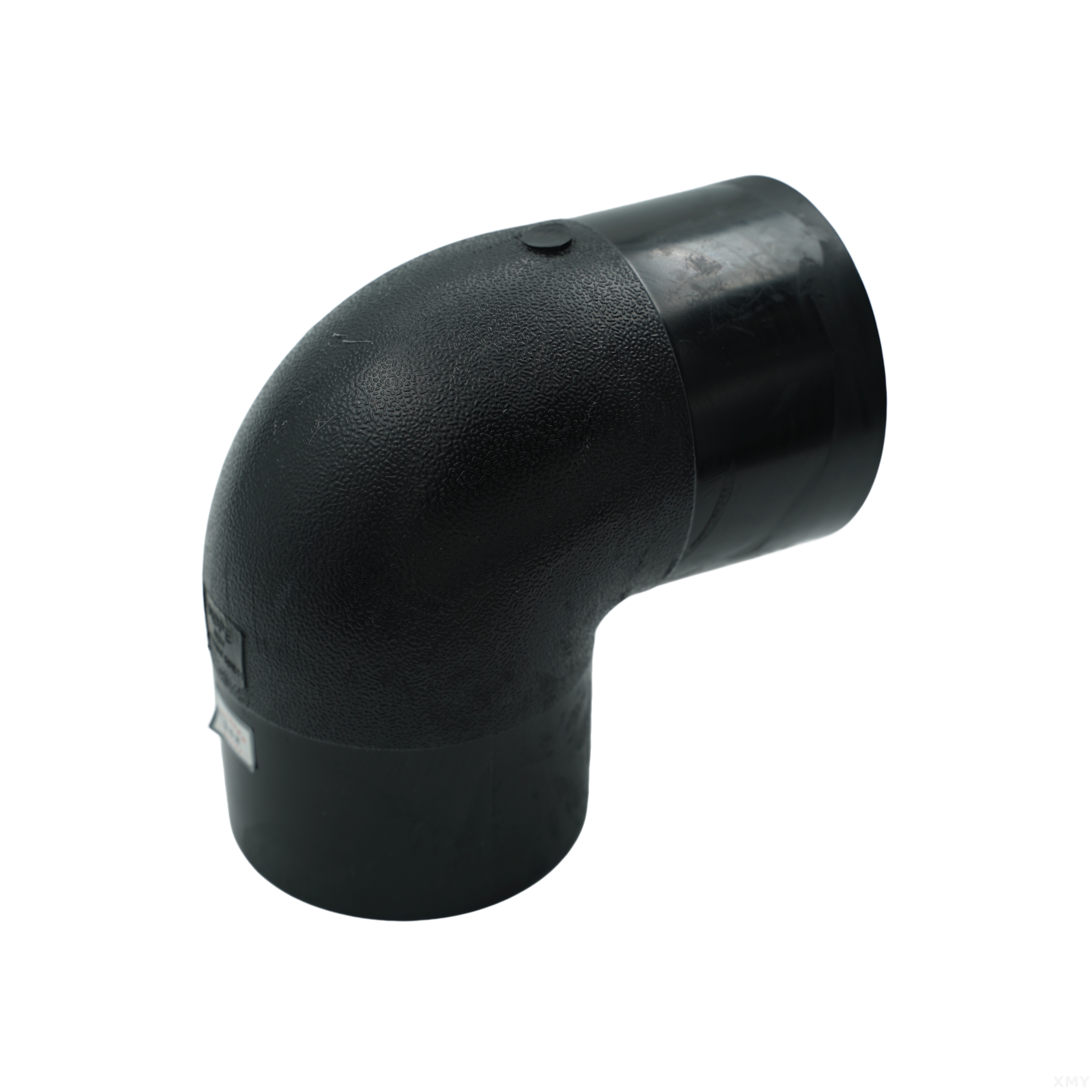

HDPE Butt Fusion 90-Degree Elbow| Water Supply| Plastic Pipe Fittings 630mm-800mm

Butt Fusion Equal Diameter 90-Degree Elbow is a pipe fitting designed to connect two pipes of the same diameter at a 90-degree angle using a butt fusion welding process. This fitting is commonly used in plastic piping systems to change the direction of fluid or gas flow while ensuring a strong and leak-proof connection.

Color:	Standard Black and Blue (Customizable)
Size:	L63mm-90 ° to L800mm-90 ° (Customizable)
Material:	PE100, PE2480
Package:	Wooden case, cartons or bags.
Process:	Butt Fusion Injection
Pressure Rating:	SDR11 (1.6MPa)/ SDR13.6 (1.25MPa)/ SDR17 (1.0MPa)
Delivery :	Dalian Port\| 5-15 Days
Availability:



Inquire Add to Basket PDF Export

Model:
HDPE BF 90Elbow
Brand:
XMY

Specifications:

L63	L160	L315	L630
L75	L180	L355	L710
L90	L200	L400	L800
L110	L225	L450
L125	L250	L500
L140	L280	L560

HDPE BUTT FUSION FITTINGS	SPECIFICATION	SIZE RANGE (mm)	PRESSURE RATING (SDR/MPa)

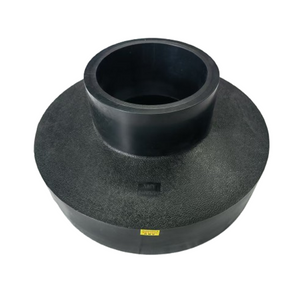

	REDUCER	DN50-630mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)

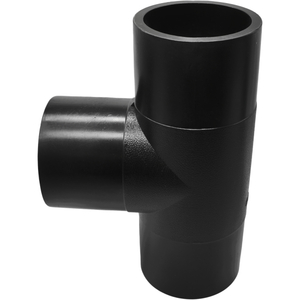

	EQUAL TEE	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	REDUCING TEE	DN50-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	22.5 ° ELBOW	DN110-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	30 ° ELBOW	DN450-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	45 ° ELBOW	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	90 ° ELBOW	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	CROSS	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	REDUCING CROSS	DN63-800mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	END CAP	DN75-1200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	STUB END	DN50-1200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	FLANGE	DN50-200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	STOP VALVE	DN75-200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
	BALL VAVLE	DN75-200mm	SDR11/ SDR13.6/ SDR17 (1.6MPa/ 1.25MPa/ 1.0MPa)
