HDPE Electrofusion Reducer| Reducing Pipe Fittings

Share to:

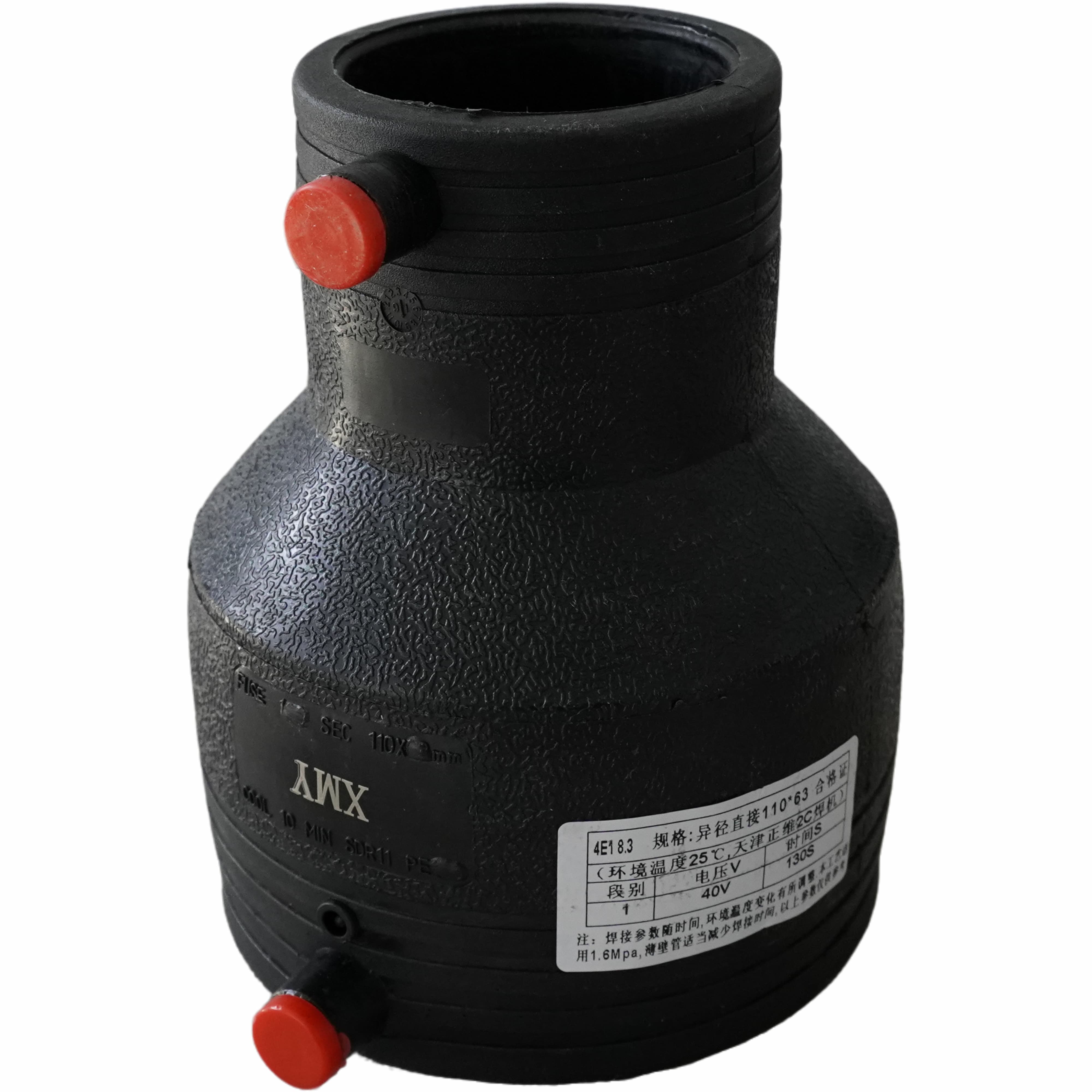

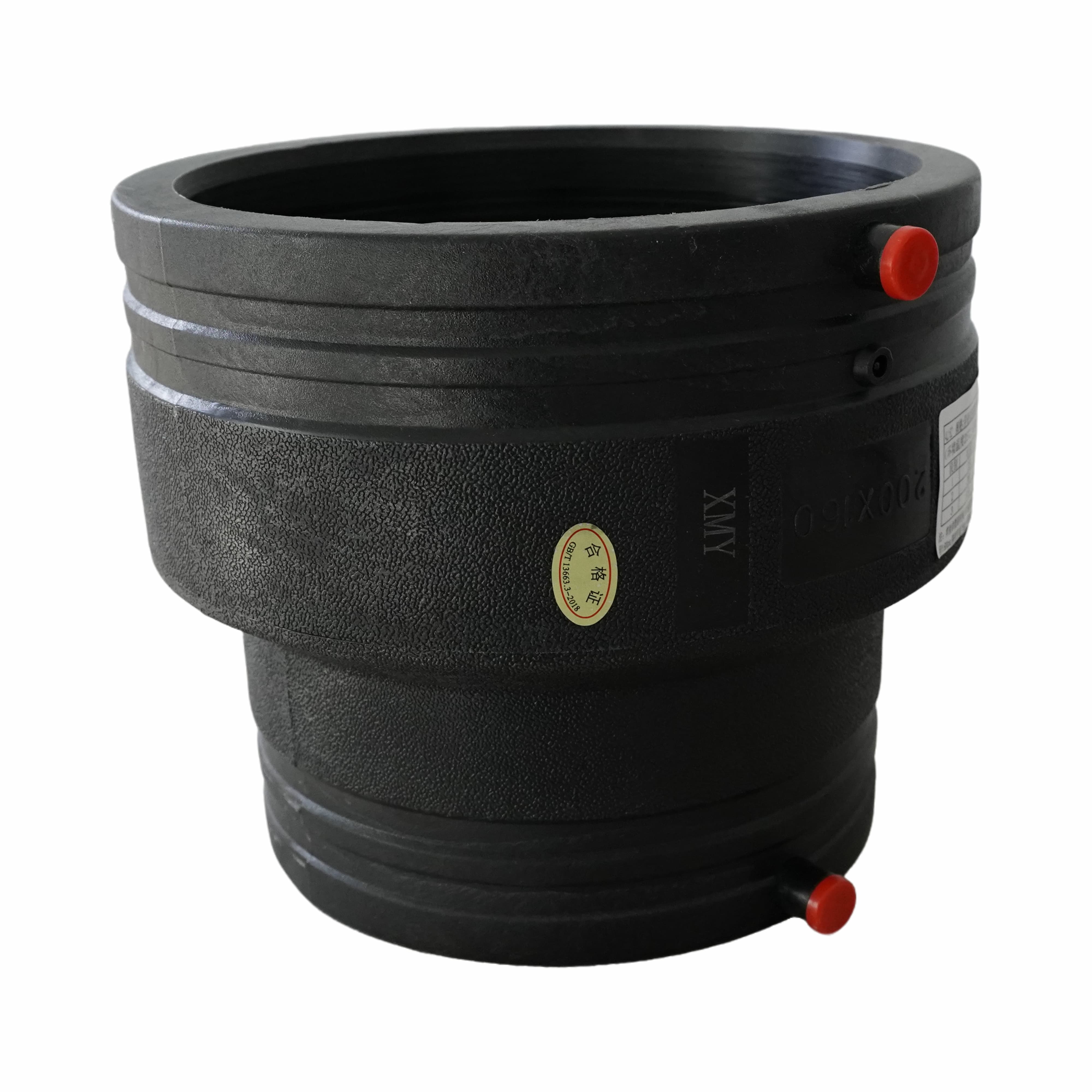

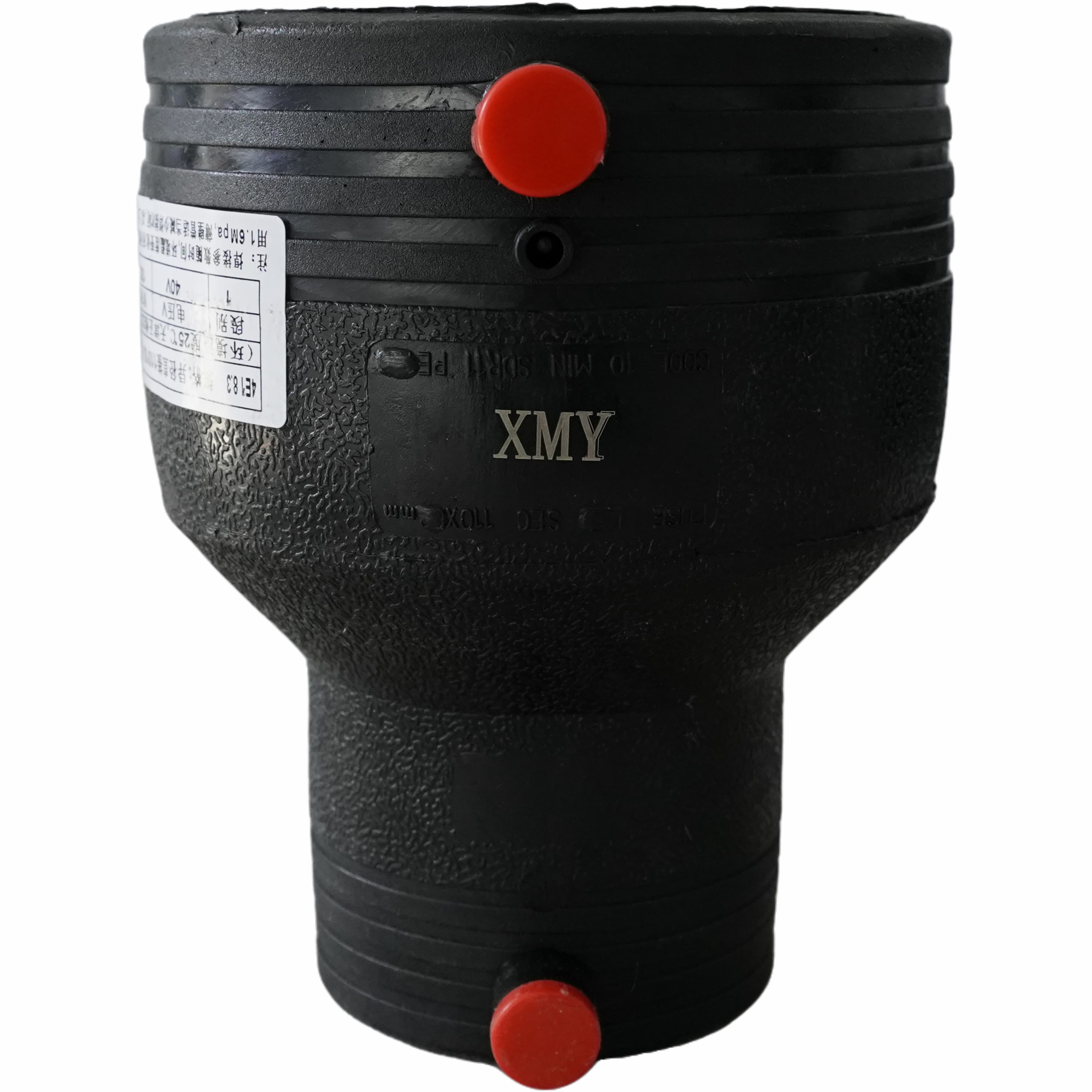

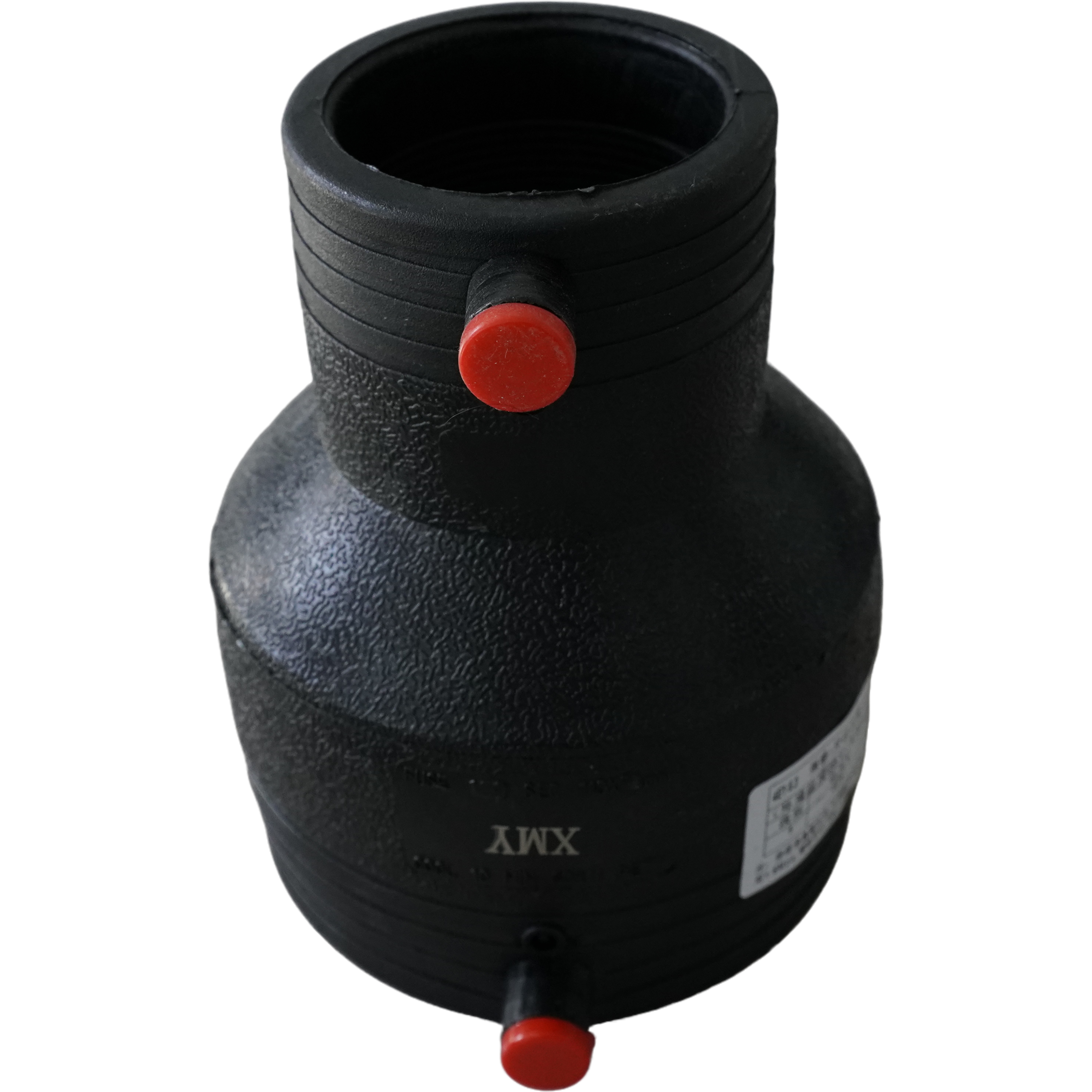

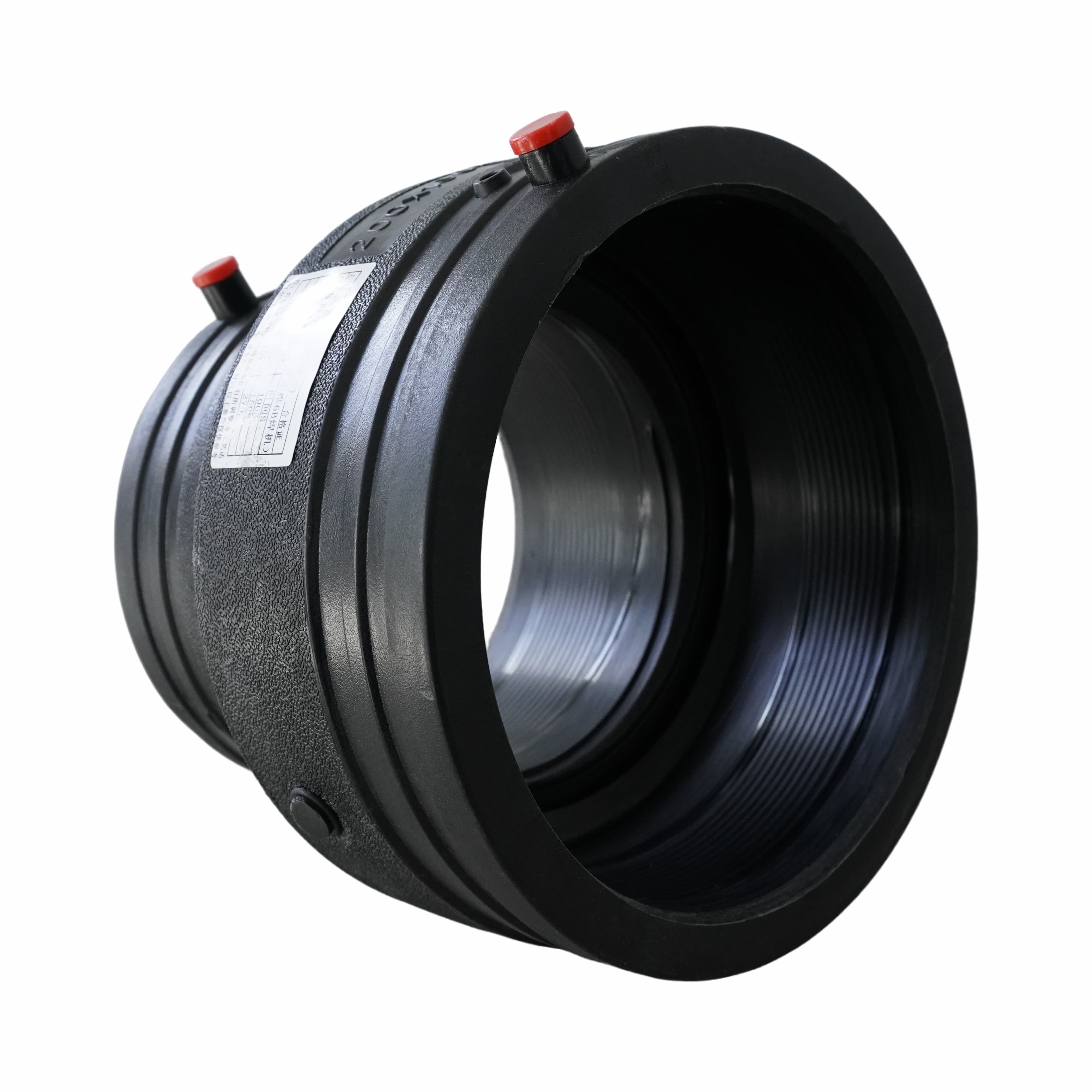

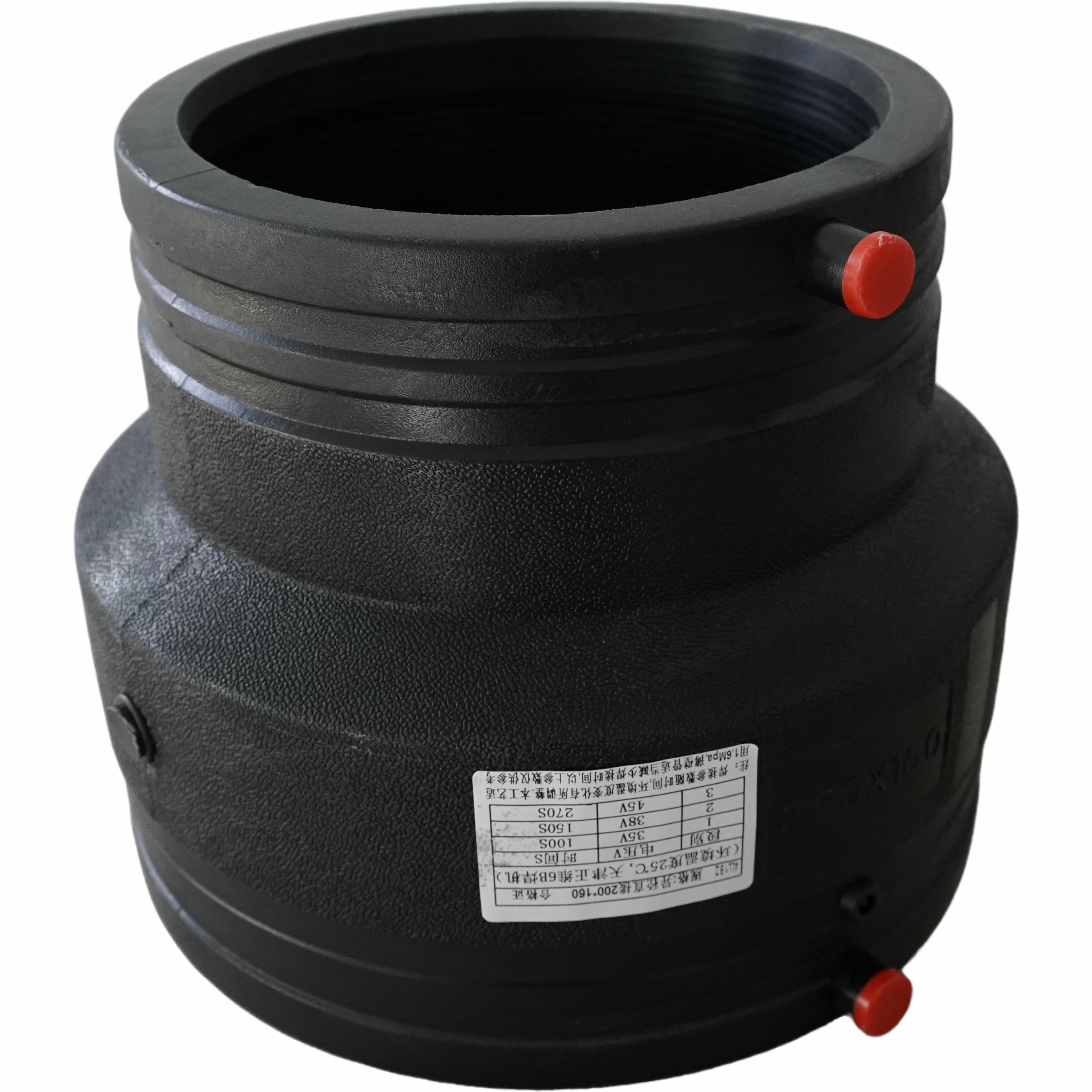

HDPE Electrofusion Reducer| Reducing Pipe Fittings

The HDPE Electrofusion Reducer is constructed from high-density polyethylene (HDPE) and features built-in heating coils for the electrofusion process. When activated, these coils melt the surfaces of the pipe and fitting, creating a strong, seamless bond. This fitting is ideal for applications such as water supply, gas distribution, and industrial pipelines where a size reduction is necessary.

Color:	Standard Black (customizable)
Size:	32mm/25mm-500mm/400mm (Customizable)
Material:	PE100
Package:	Wooden case, cartons or bags
Process:	Electrofusion
Pressure Rating:	SDR9 (Mpa2.0) (PN20)/ SDR11 (Mpa1.6) (PN16)/ SDR13.6 (Mpa1.25) (PN12.5)/ SDR26 (Mpa1.0) (PN6)
Delivery :	Dalian Port\| 5-15 Days
Availability:



Inquire Add to Basket PDF Export

Model:
HDPE EF Reducer
Brand:
XMY

Specifications:

32-25	90-50	125-90	160-125	200-140	315-160	400-315
40-32	90-63	125-110	160-140	200-160	315-200	500-315
50-32	90-75	140-110	200-50	225-110	315-250	500-400
50-40	110-50	160-50	200-63	225-160	355-200
63-32	110-63	160-63	200-75	225-200	355-250
63-50	110-75	160-75	200-90	250-110	355-315
75-50	110-90	160-90	200-110	250-160	400-200
75-63	125-75	160-110	200-125	250-200	400-250

HDPE ELECTROFUSION FITTINGS	SPECIFICATION	SIZE RANGE (mm)	PRESSURE RATING (SDR)
	EF COUPLING	DN20-1000mm	SDR17/ SDR11/ SDR9
	EF REDUCER	DN2532-400500mm	SDR17/ SDR11/ SDR9
	EF TEE	DN32-630mm	SDR17/ SDR11/ SDR9
	REDUCING TEE	DN2532-630500mm	SDR17/ SDR11/ SDR9
	EF 45 ° ELBOW	DN50-630mm	SDR17/ SDR11/ SDR9
	EF 90 ° ELBOW	DN32-630mm	SDR17/ SDR11/ SDR9
	EF END CAP	DN50-250mm	SDR17/ SDR11/ SDR9
	EF STUB END	DN50-800mm	SDR17/ SDR11/ SDR9
	EF FLANGE	DN50-630mm	SDR17/ SDR11/ SDR9
