Electrofusion Reducing Tee| HDPE PE100 Pipe Fittings

Share to:

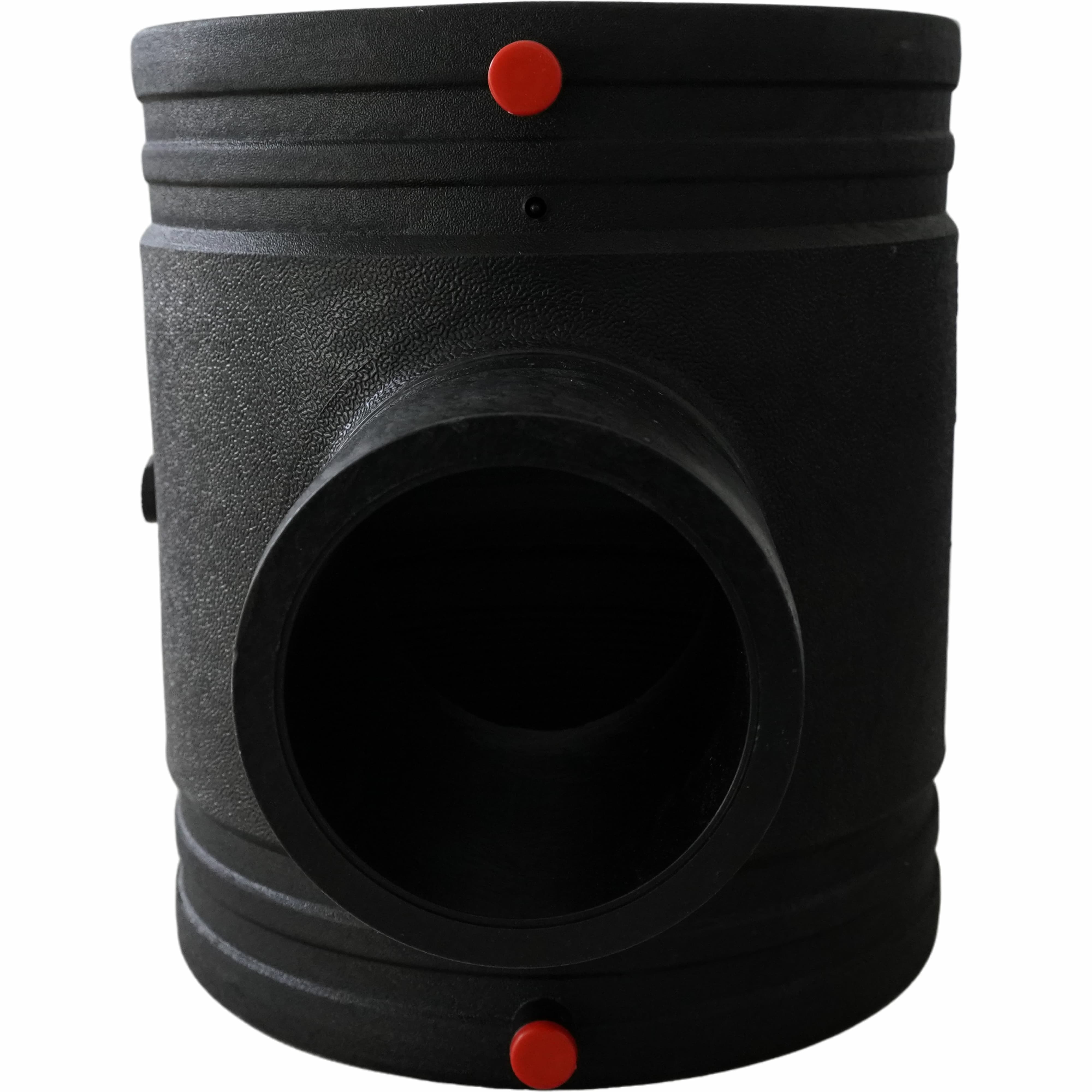

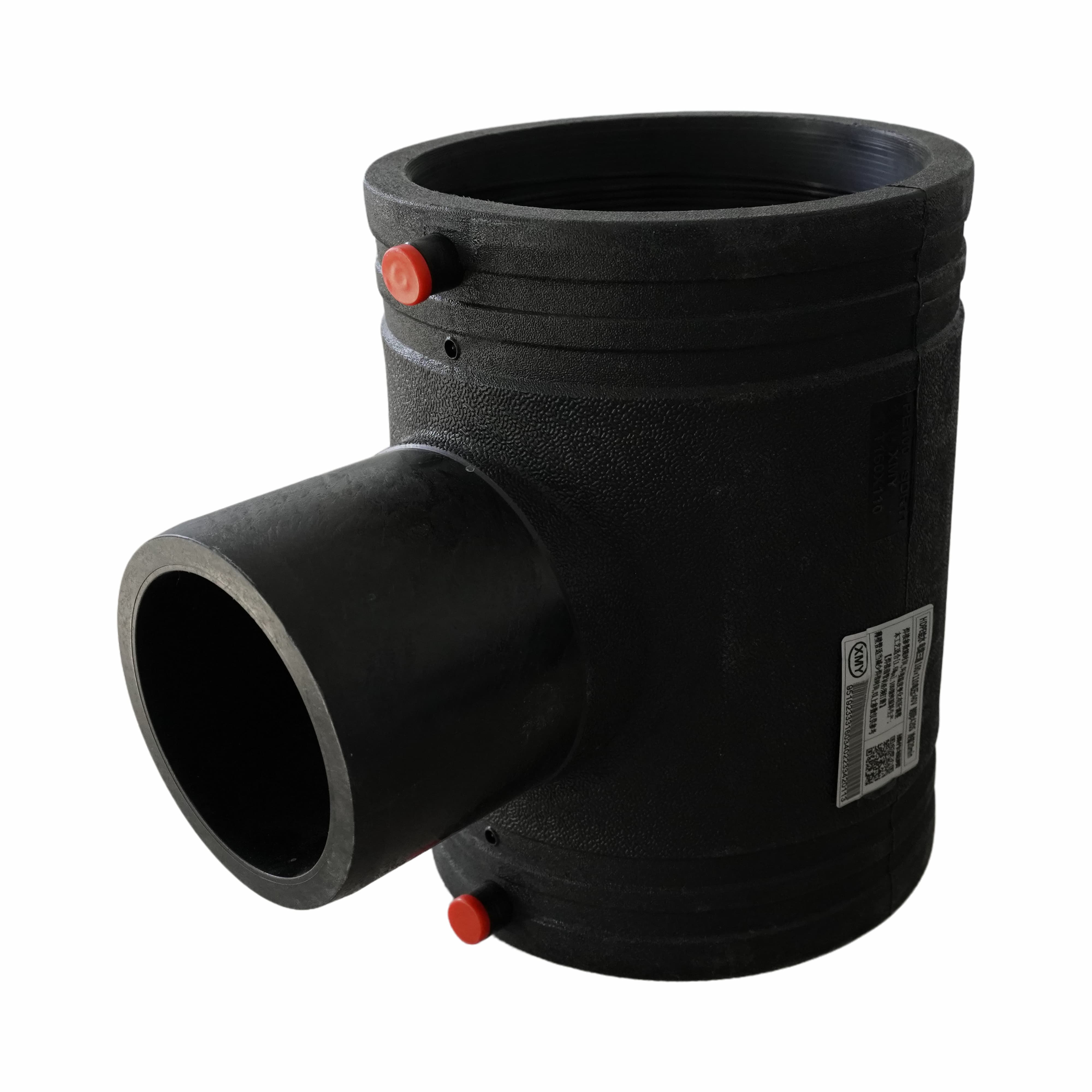

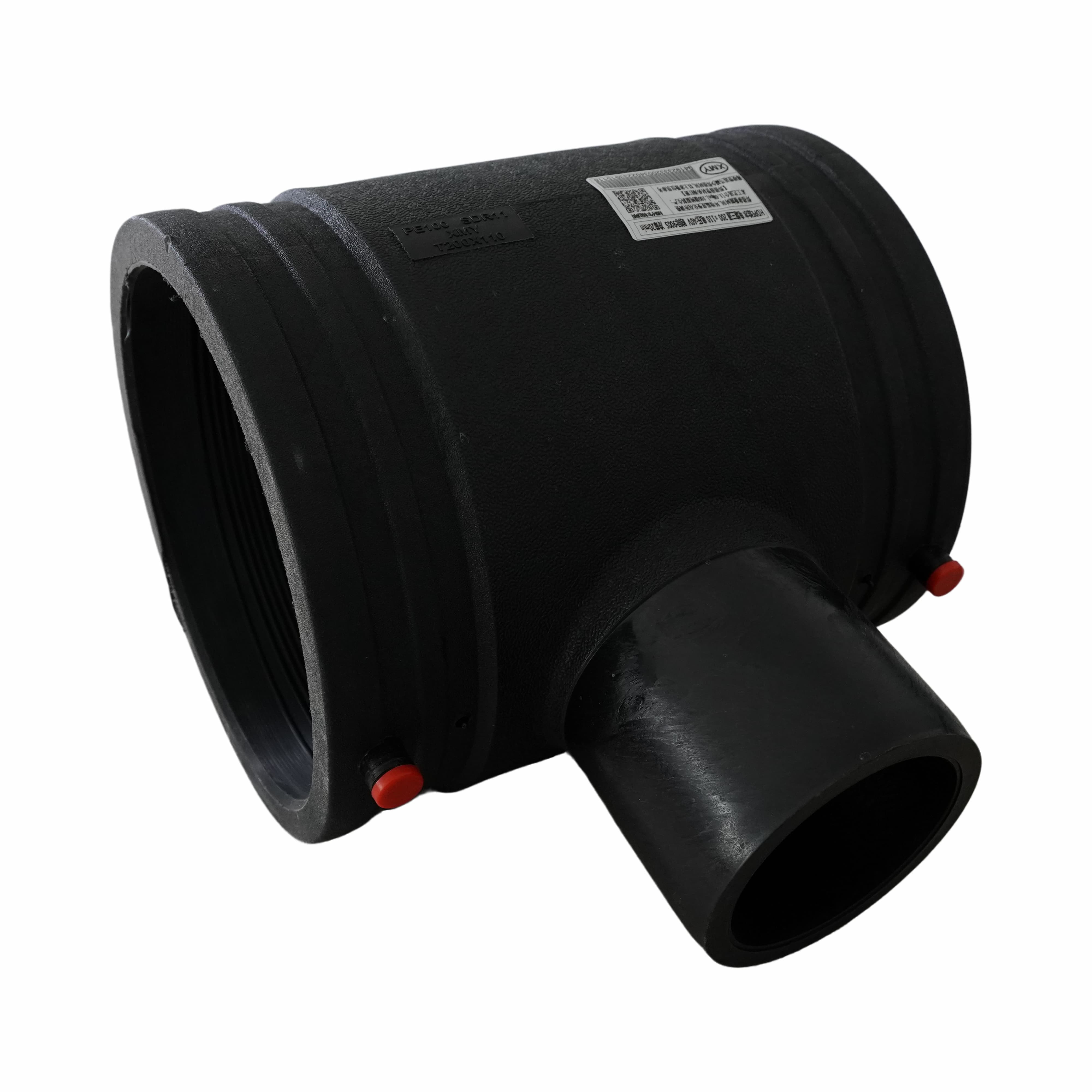

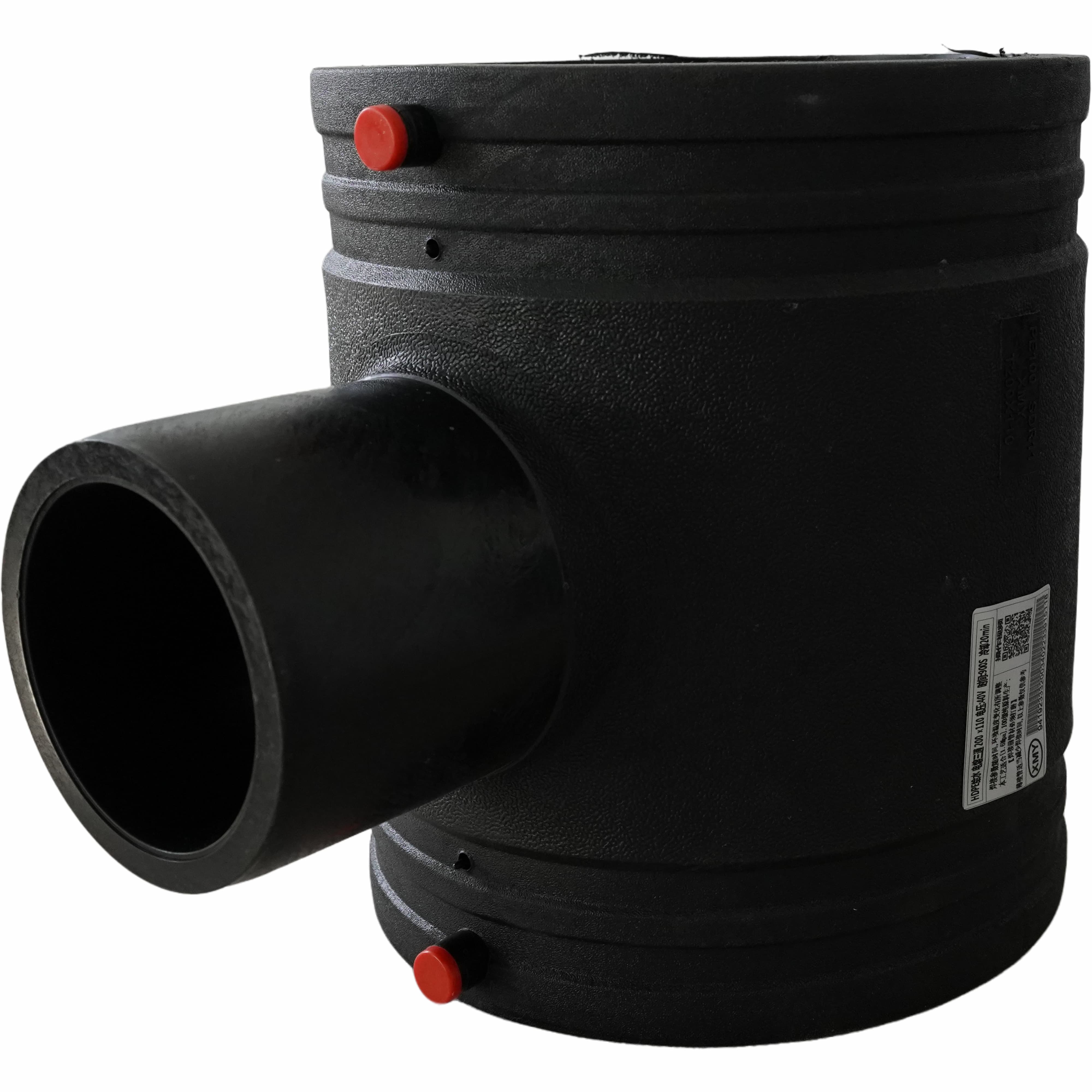

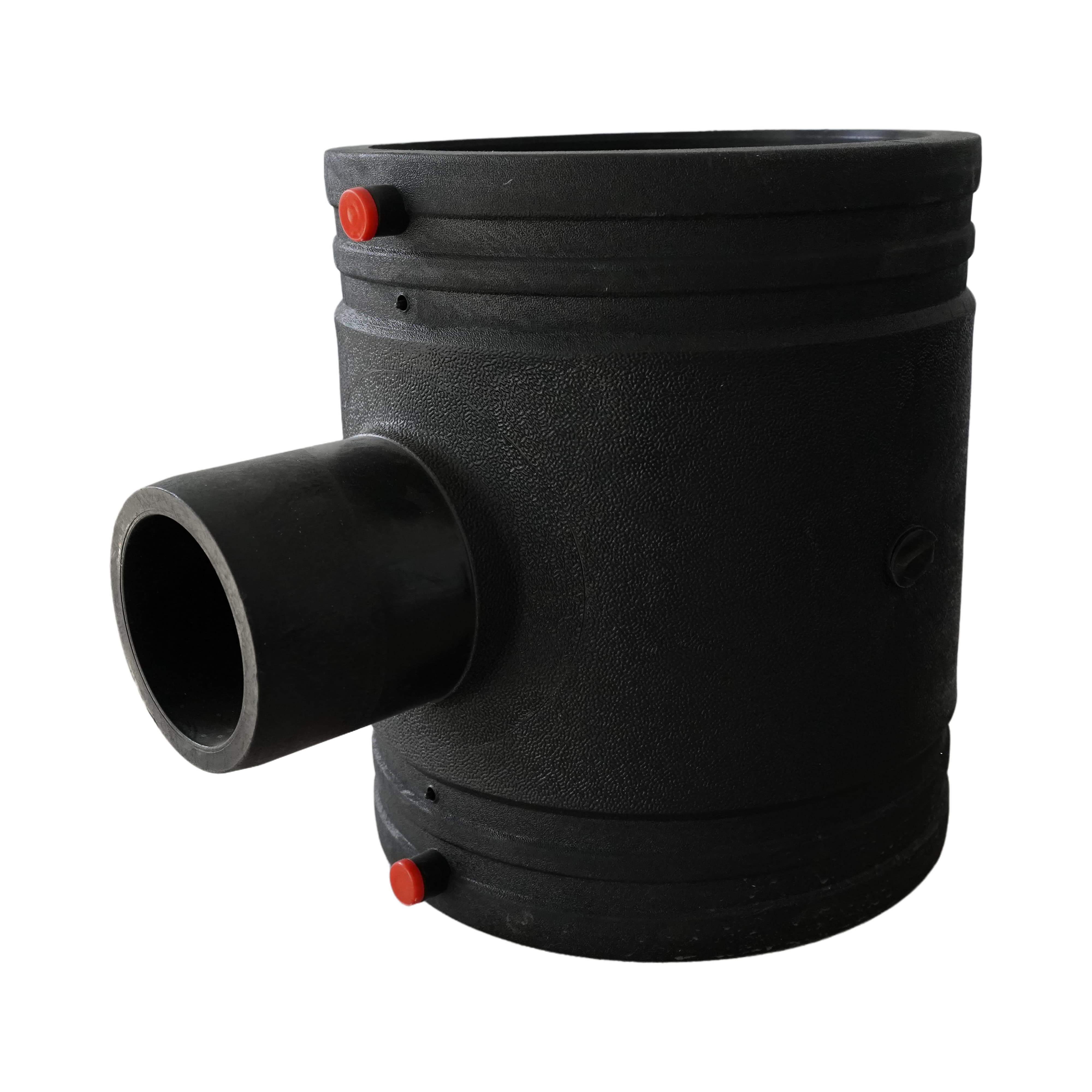

Electrofusion Reducing Tee| HDPE PE100 Pipe Fittings

The HDPE Electrofusion Reducing Tee is manufactured from durable, high-density polyethylene (HDPE). It features integrated heating coils that, when activated, melt the surfaces of the pipes and fitting, forming a seamless and strong bond. This reducing tee is ideal for applications requiring size transitions in branching connections.

Color:	Standard Black (customizable)
Size:	32/25mm~630/500mm (Customizable)
Material:	PE100/ PE8003
Package:	Wooden case, cartons or bags.
Process:	Electrofusion
Pressure Rating:	SDR9 (Mpa2.0) (PN20)/ SDR11 (Mpa1.6) (PN16)/ SDR13.6 (Mpa1.25) (PN12.5)/ SDR26 (Mpa1.0) (PN6)
Delivery :	Dalian Port 5-15Days
Availability:



Inquire Add to Basket PDF Export

Model:
HDPE EF RTee
Brand:
XMY

Specifications:

32-25	160-110	355-160
40-25	160-125	355-200
50-25	160-140	355-250
50-32	200-50	355-315
50-40	200-63	400-110
50-40	200-75	400-160
63-40	200-90	400-200
63-50	200-110	400-250
75-40	200-125	400-315
75-50	200-140	400-355
75-63	200-160	500-110
90-50	225-110	500-160
90-63	225-160	500-200
90-75	225-200	500-225
110-50	250-75	500-250
110-63	250-90	500-315
110-75	250-110	500-400
110-90	250-125	630-110
125-75	250-160	630-160
125-90	250-200	630-200
125-110	315-90	630-250
140-90	315-110	630-315
140-110	315-125	630-400
160-50	315-160	630-500
160-63	315-200
160-75	315-250
160-90	355-110

HDPE ELECTROFUSION FITTINGS	SPECIFICATION	SIZE RANGE (mm)	PRESSURE RATING (SDR)
	EF COUPLING	DN20-1000mm	SDR17/ SDR11/ SDR9
	EF REDUCER	DN2532-400500mm	SDR17/ SDR11/ SDR9
	EF TEE	DN32-630mm	SDR17/ SDR11/ SDR9
	REDUCING TEE	DN2532-630500mm	SDR17/ SDR11/ SDR9
	EF 45 ° ELBOW	DN50-630mm	SDR17/ SDR11/ SDR9
	EF 90 ° ELBOW	DN32-630mm	SDR17/ SDR11/ SDR9
	EF END CAP	DN50-250mm	SDR17/ SDR11/ SDR9
	EF STUB END	DN50-800mm	SDR17/ SDR11/ SDR9
	EF FLANGE	DN50-630mm	SDR17/ SDR11/ SDR9
