HDPE Eccentric Reducer Electrofusion Same-Floor Drainage

Share to:

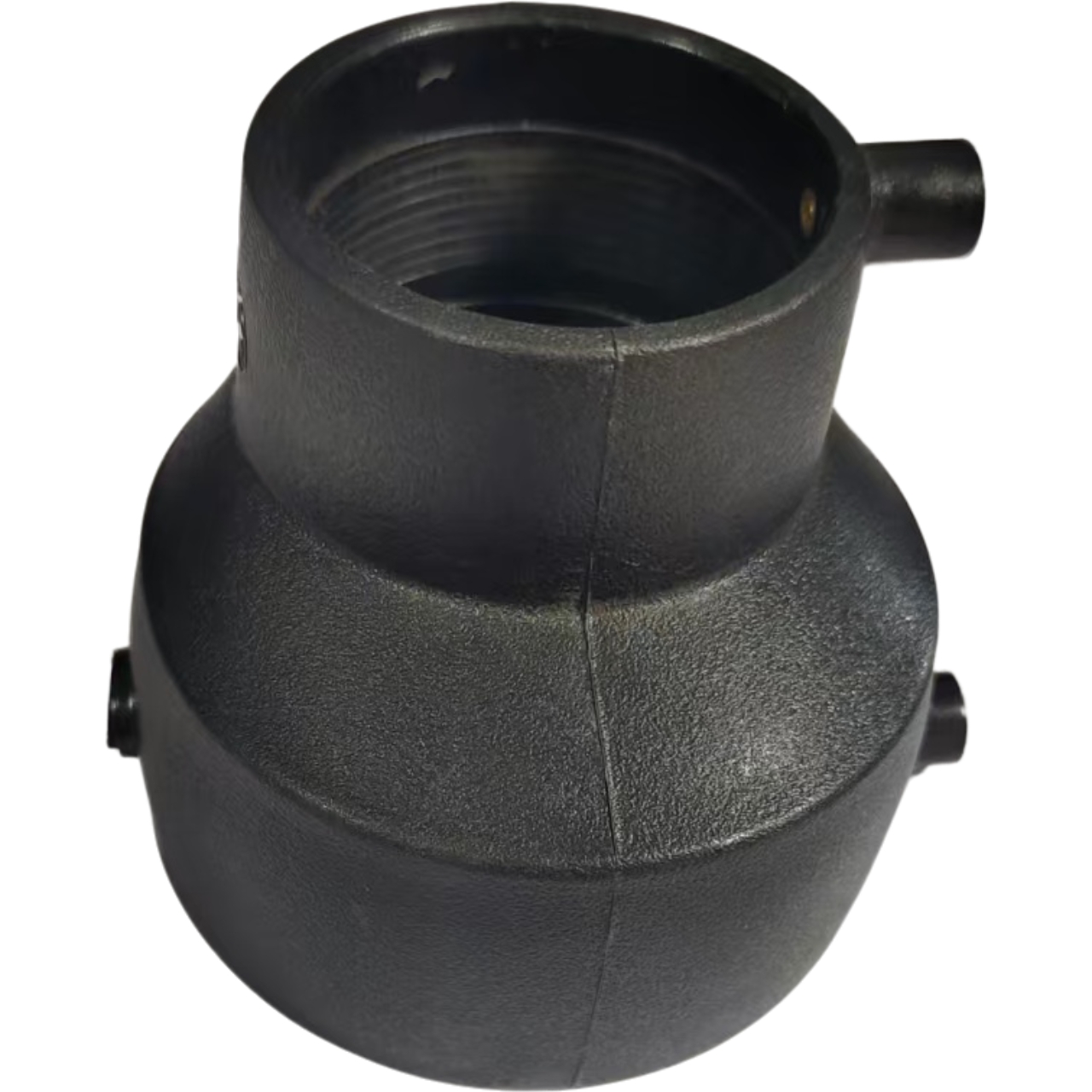

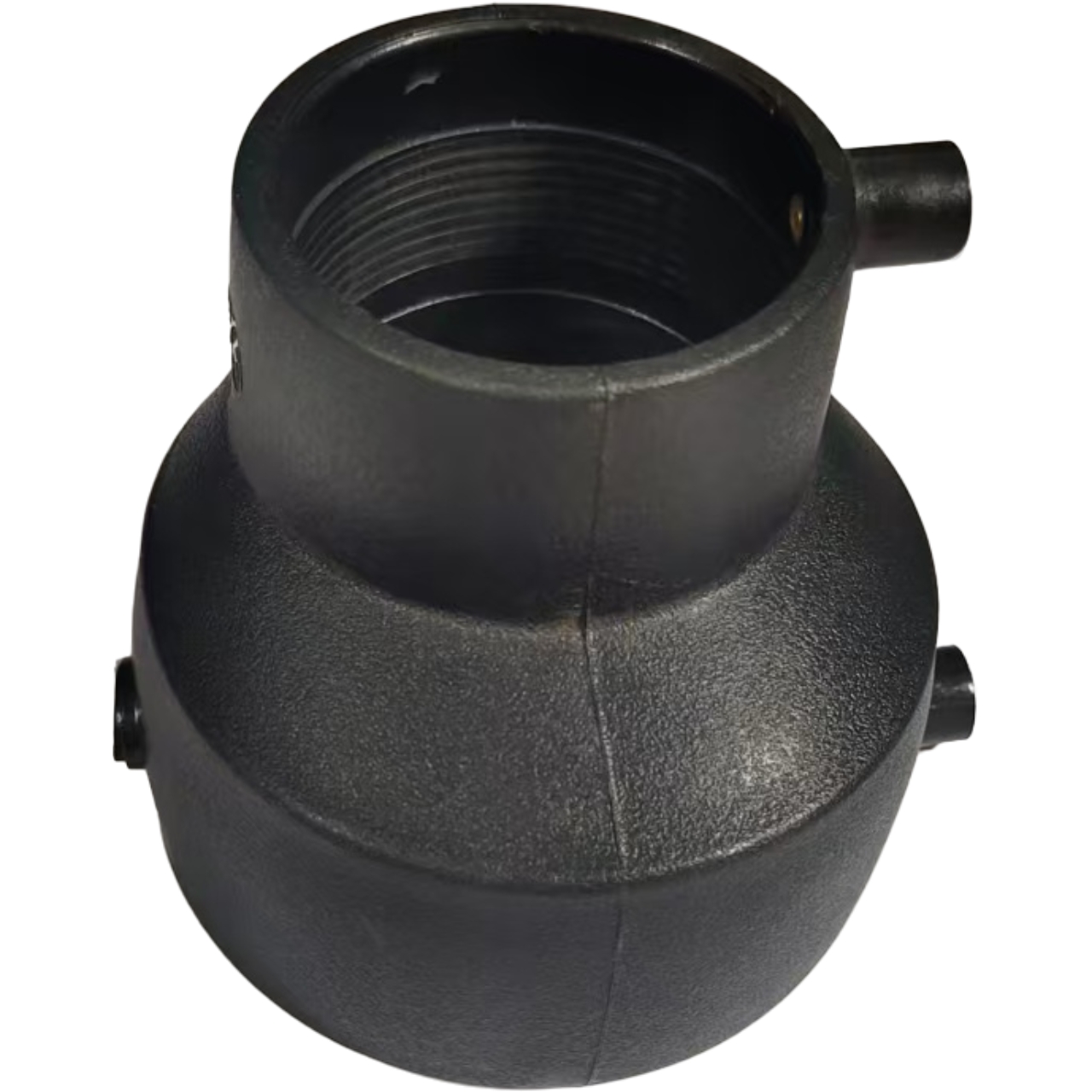

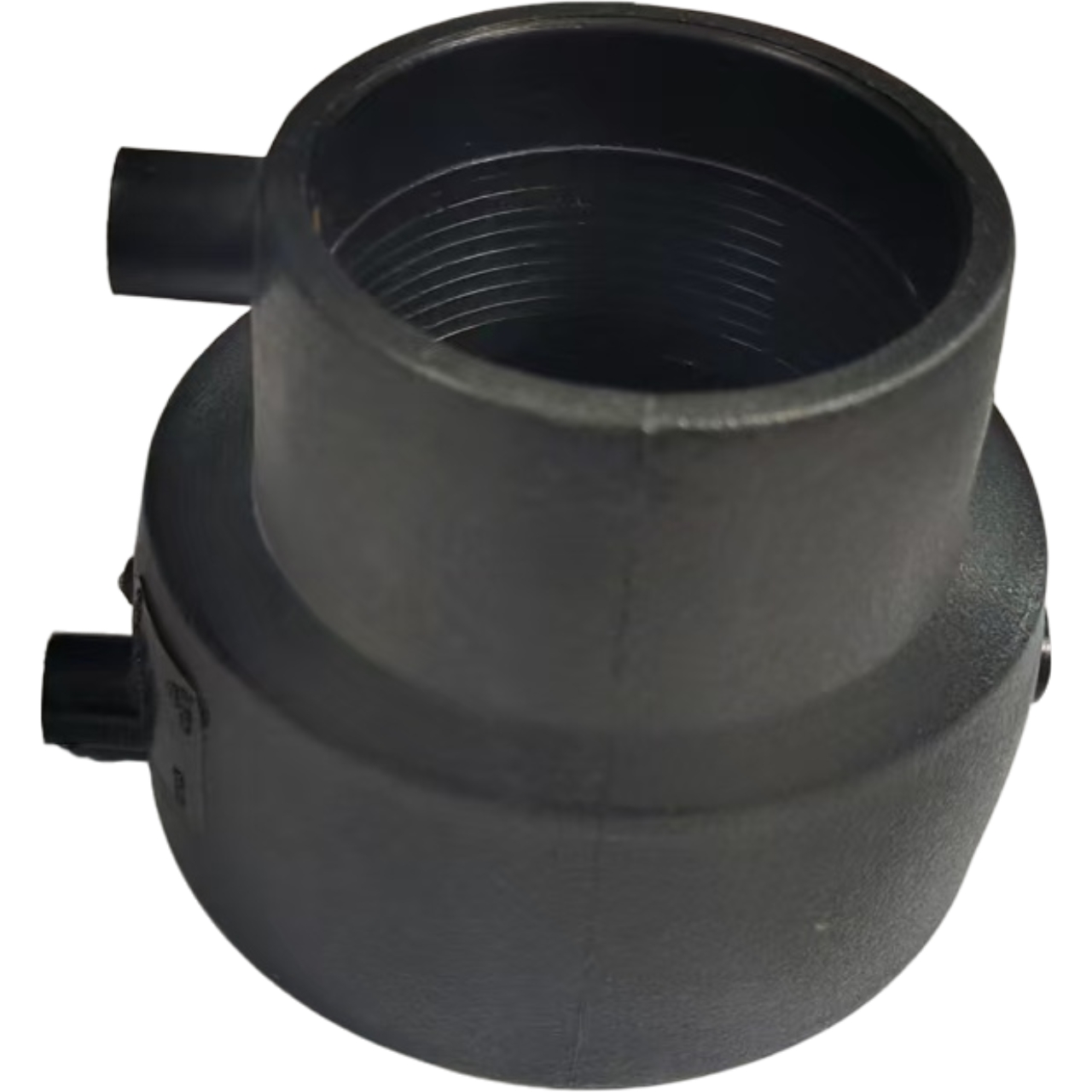

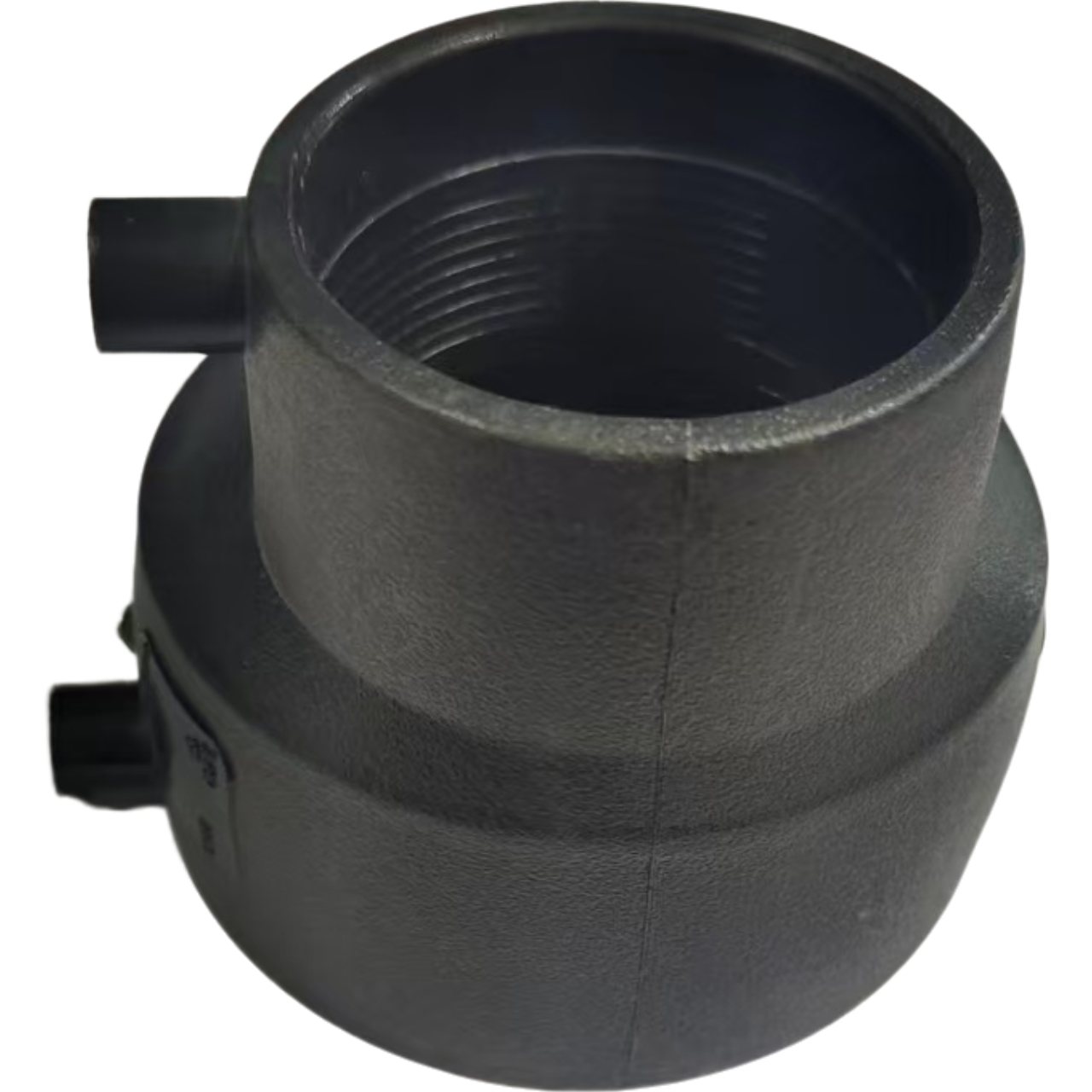

HDPE Eccentric Reducer Electrofusion Same-Floor Drainage

The HDPE Reducer Electrofusion Same-Floor Drainage fitting is used to join two pipes with different diameters in horizontal drainage systems. It features a built-in electrofusion coil, which, when electrically activated, melts the fitting and pipe surfaces to form a permanent, strong bond, creating a reliable, leak-proof connection.

Color:	Standard Black (customizable)
Size:	50mm-315mm (Customizable)
Material:	PE100/ PE8003
Package:	Wooden case, cartons or bags.
Process:	Electrofusion
Pressure Rating:	SDR26 (0.6Mpa) (PN6)
Delivery :	Dalian Port 5-15Days
Availability:



Inquire Add to Basket PDF Export

Model:
SD E Reducer
Brand:
XMY

Specifications:

50-40	90-75	125-110	250-125
56-50	110-50	160-75	250-160
63-50	110-56	160-90	250-200
63-56	110-63	160-110	315-160
75-50	110-75	160-125	315-200
75-56	110-90	200-90	315-250
75-63	125-50	200-110
90-50	125-64	200-125
90-56	125-75	200-160
90-63	125-90	250-110
