HDPE Butt Fusion Reducing Tee 63mm-80mm PE100| Reducing Pipe Fittings

Share to:

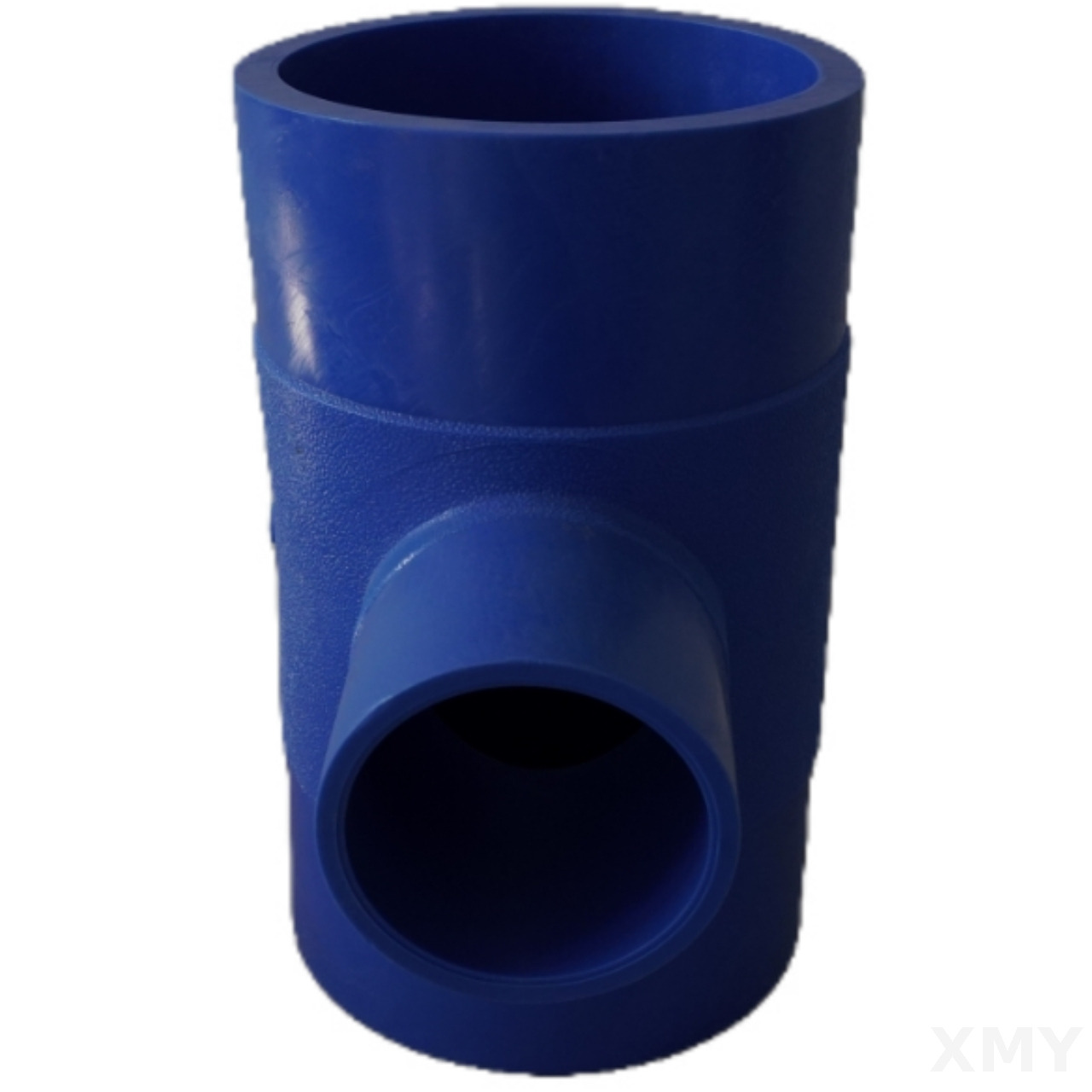

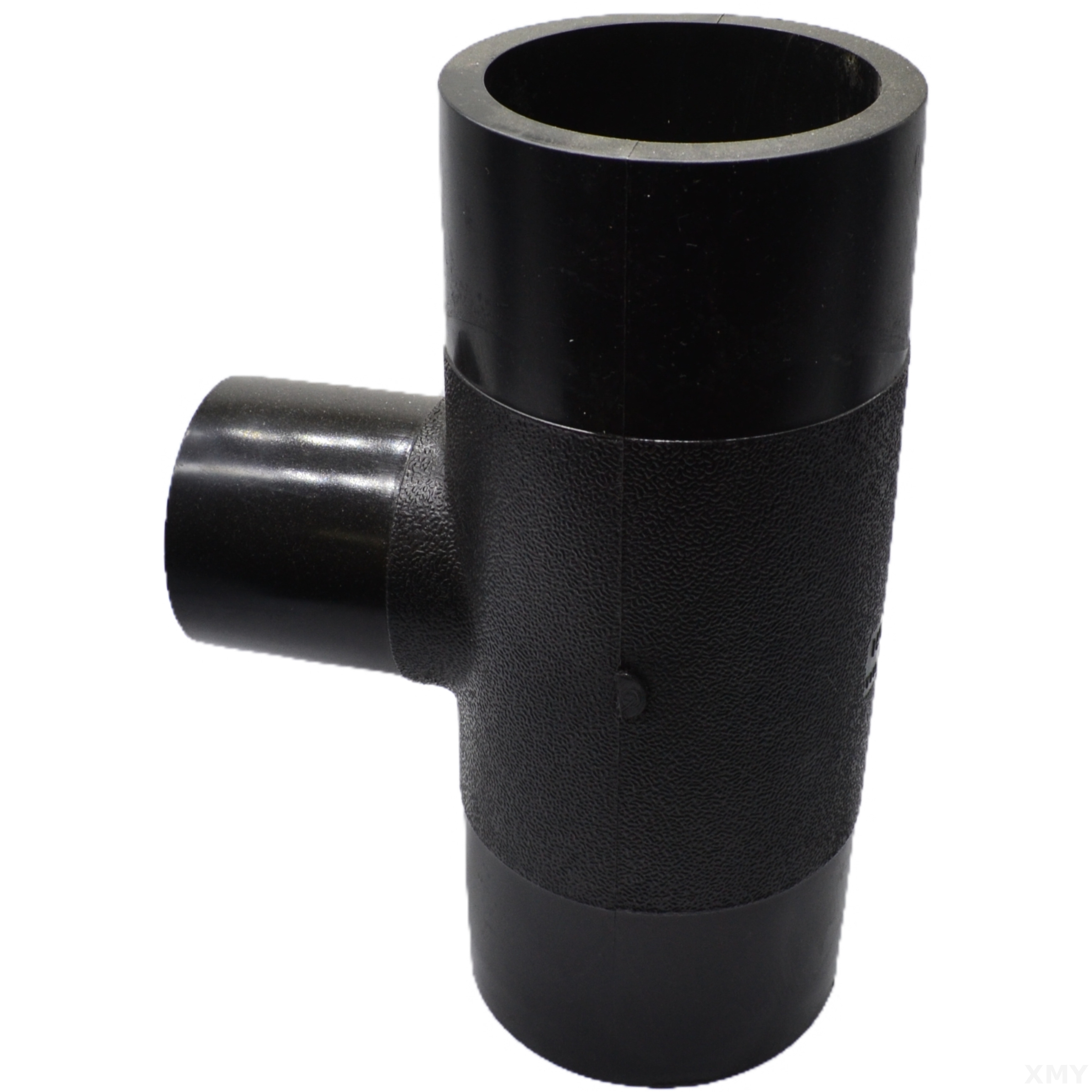

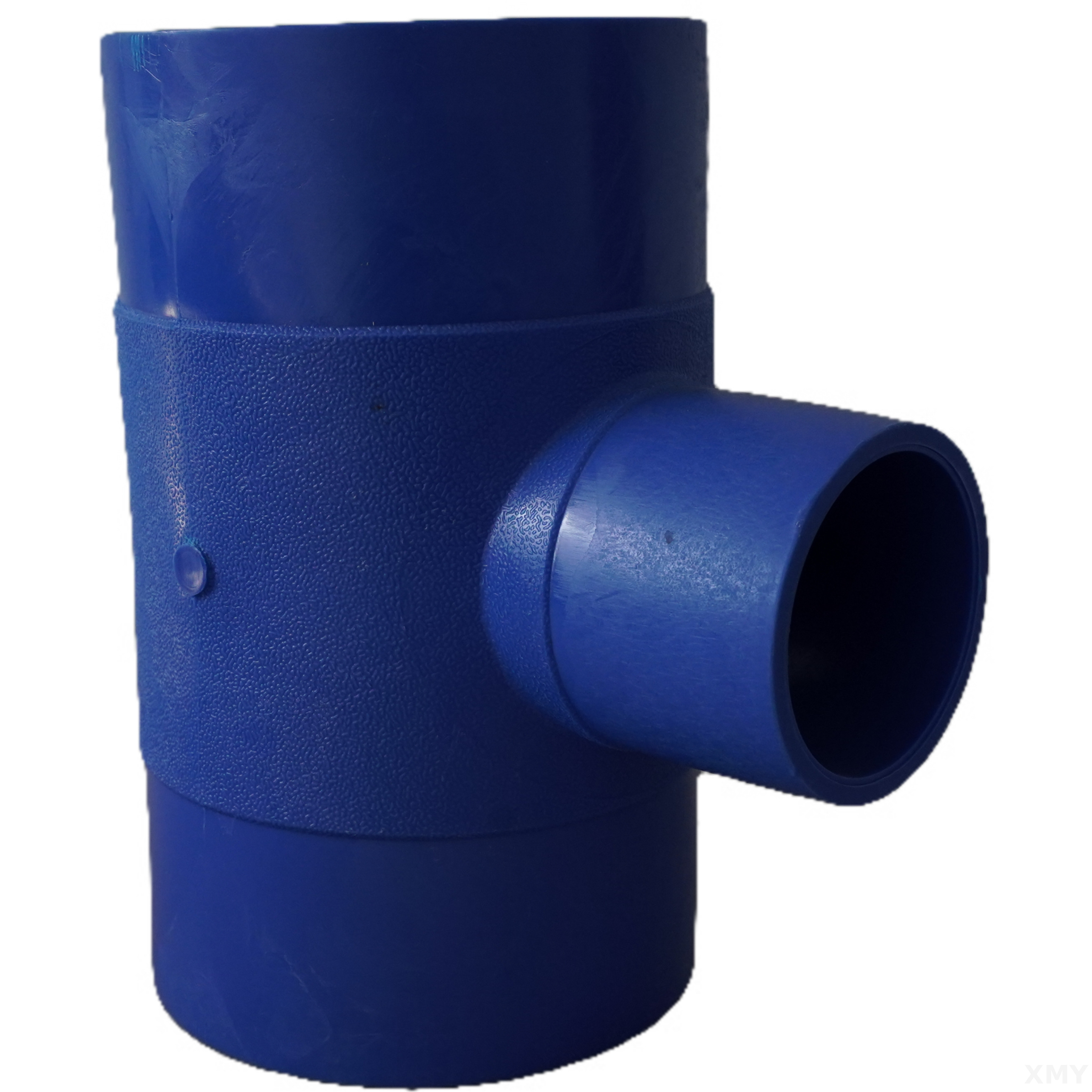

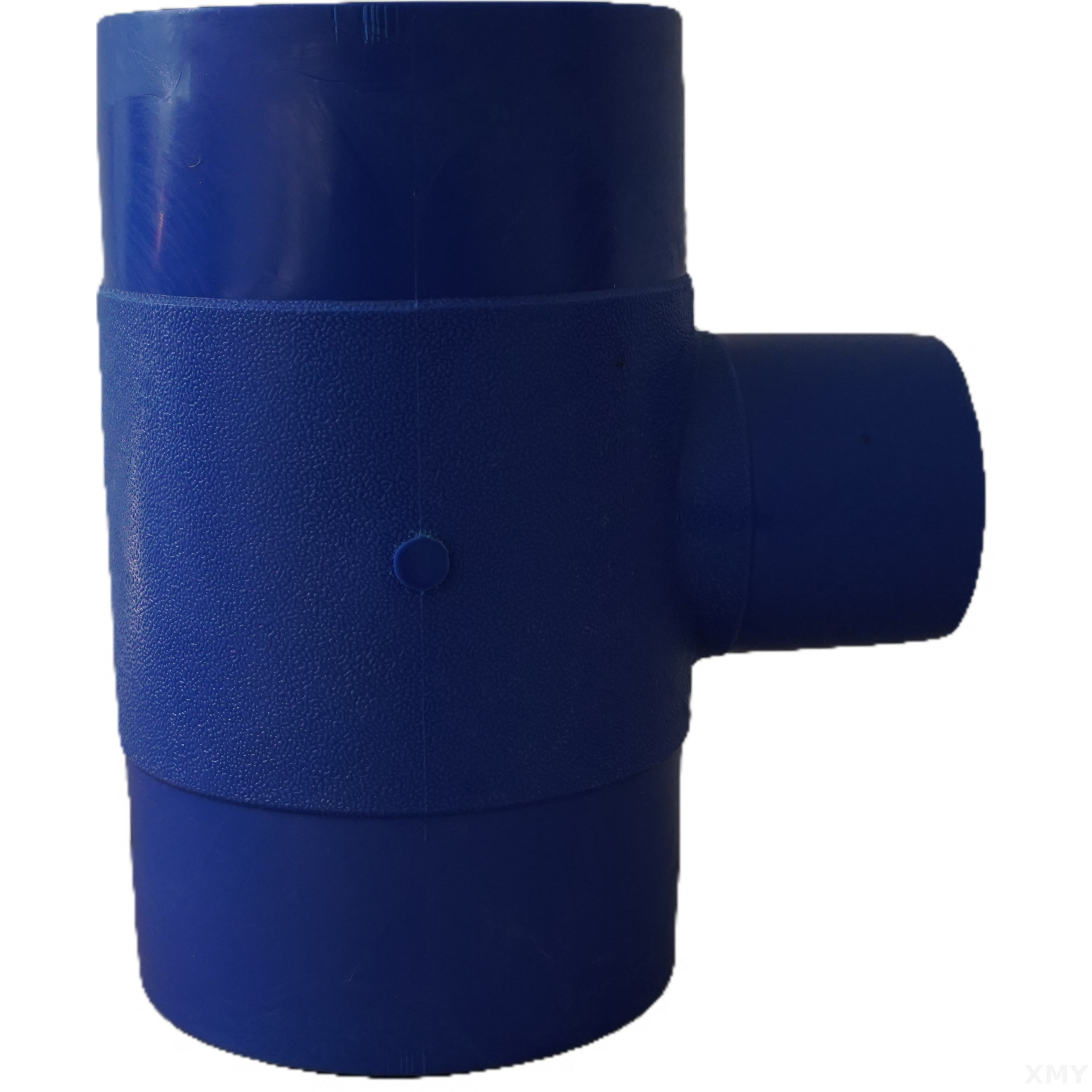

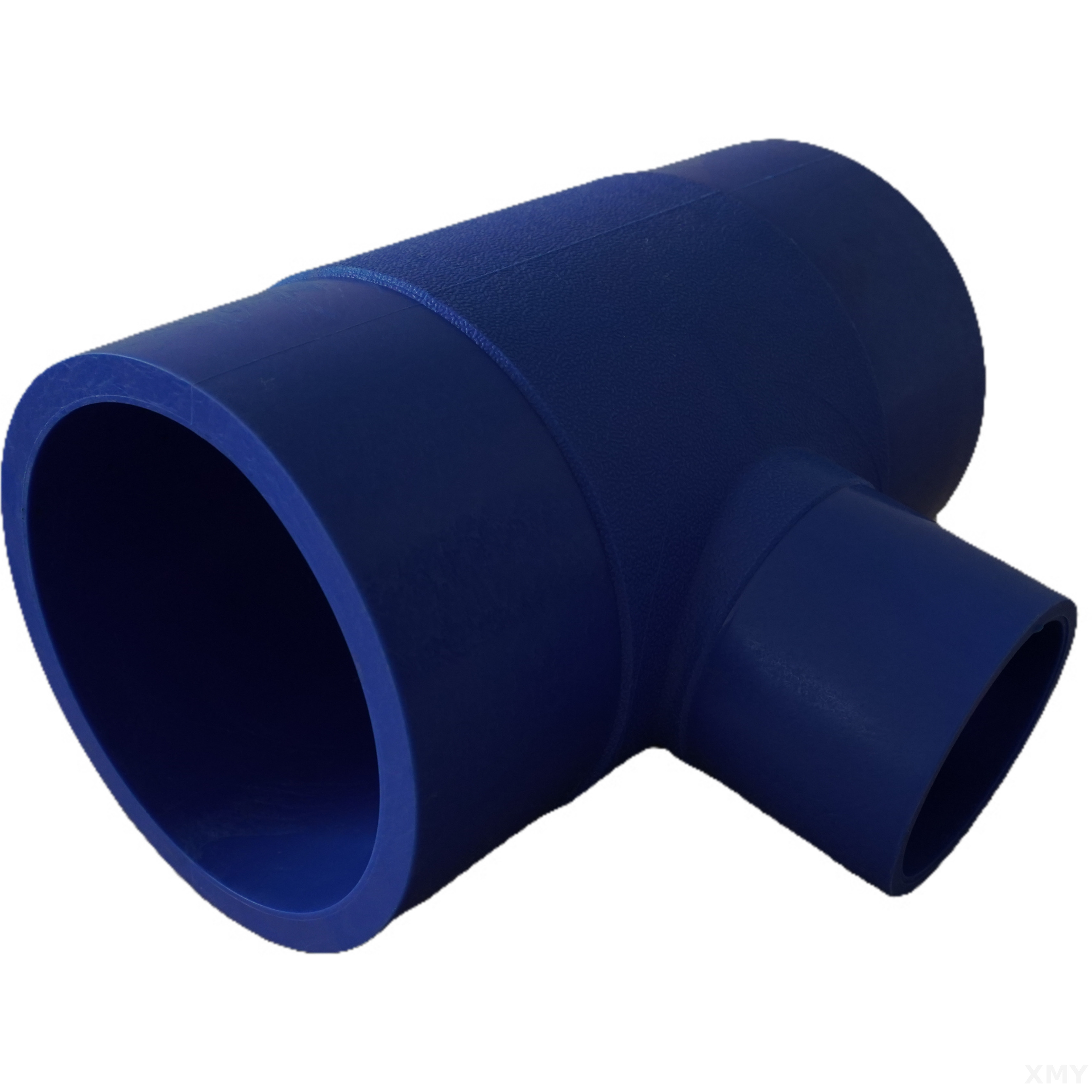

HDPE Butt Fusion Reducing Tee 63mm-80mm PE100| Reducing Pipe Fittings

Butt Fusion Reducing Tee is a specialized pipe fitting designed to connect two pipes of different diameters to a third pipe in a pipeline system. This fitting, connected using the butt fusion welding process, is ideal for changing the direction of fluid or gas flow while ensuring high sealing performance and structural strength.

Color:	Standard Black and Blue (Customizable)
Size:	75mm/50mm-800mm/710mm (Customizable)
Process:	Butt Fusion Injection
Material:	PE100/ PE2480
Pressure Rating:	SDR11 (1.6MPa)/ SDR13.6 (1.25MPa)/ SDR17 (1.0MPa)
Package :	Wooden case, cartons or bags.
Delivery :	5-15 Days
Availability:



Inquire Add to Basket PDF Export

Model:
HDPEBFRTEE
Brand:
XMY

Specification:

75-50	160-90	315-90	560-200
75-63	160-110	315-110	560-225
90-20	160-125	315-160	560-250
90-25	180-90	315-200	560-315
90-32	180-110	315-250	560-400
90-40	180-160	355-110	630-200
90-50	200-75	355-160	630-225
90-63	200-90	355-200	630-250
90-75	200-110	355-250	630-315
110-20	200-125	355-315	630-400
110-25	200-160	400-110	630-450
110-32	225-63	400-160	630-500
110-40	225-75	400-200	710-110
110-50	225-90	400-250	710-160
110-63	225-110	400-315	710-200
110-75	225-160	450-110	710-250
110-90	225-200	450-160	710-315
125-50	250-63	450-200	710-400
125-63	250-75	450-225	710-500
125-75	250-90	450-315	710-630
125-90	250-110	450-355	800-110
125-110	250-160	450-400	800-160
140-63	250-200	500-110	800-200
140-75	250-225	500-160	800-250
140-90	280-110	500-200	800-315
140-110	280-160	500-225	800-400
140-125	280-200	500-250	800-500
160-50	280-250	500-315	800-630
160-63	315-63	500-400	800-710
160-75	315-75	560-160
